Introduction
The Tyndall effect is an optical phenomenon where light scatters off small particles suspended in a medium, producing a blue or grey visual appearance when viewed from the side. In PMU, it occurs when pigment is implanted too superficially in the skin — the pigment particles scatter incoming light in the upper dermis, creating a blue or grey cast over the treated area regardless of the pigment’s actual color. It is the primary scientific explanation for why brown or black PMU pigments can heal with a distinctly blue or grey appearance, and it is caused by implantation depth error — not pigment formula failure.
The Tyndall effect is one of the most important — and least discussed — concepts in PMU science. Artists who understand it can diagnose the root cause of blue or grey healed results accurately, explain the phenomenon to clients clearly, and adjust their technique to prevent it from occurring. Artists who do not understand it often misattribute the problem to pigment quality, skin type, or healing variation — and repeat the same depth error in subsequent procedures.
| Factor | Tyndall Effect Present | Tyndall Effect Absent |
|---|---|---|
| Implantation depth | Too superficial — upper dermis or epidermis | Correct depth — mid dermis |
| Visual appearance | Blue or grey cast over healed area | True healed pigment color visible |
| Pigment formula | Any formula can produce it if too shallow | Not a formula issue |
| Skin tone effect | More visible on fair skin, present on all tones | Not applicable |
| Reversibility | Fades as pigment migrates or breaks down; correctable | Not applicable |
| Primary cause | Technique error — insufficient needle depth | Correct implantation technique |

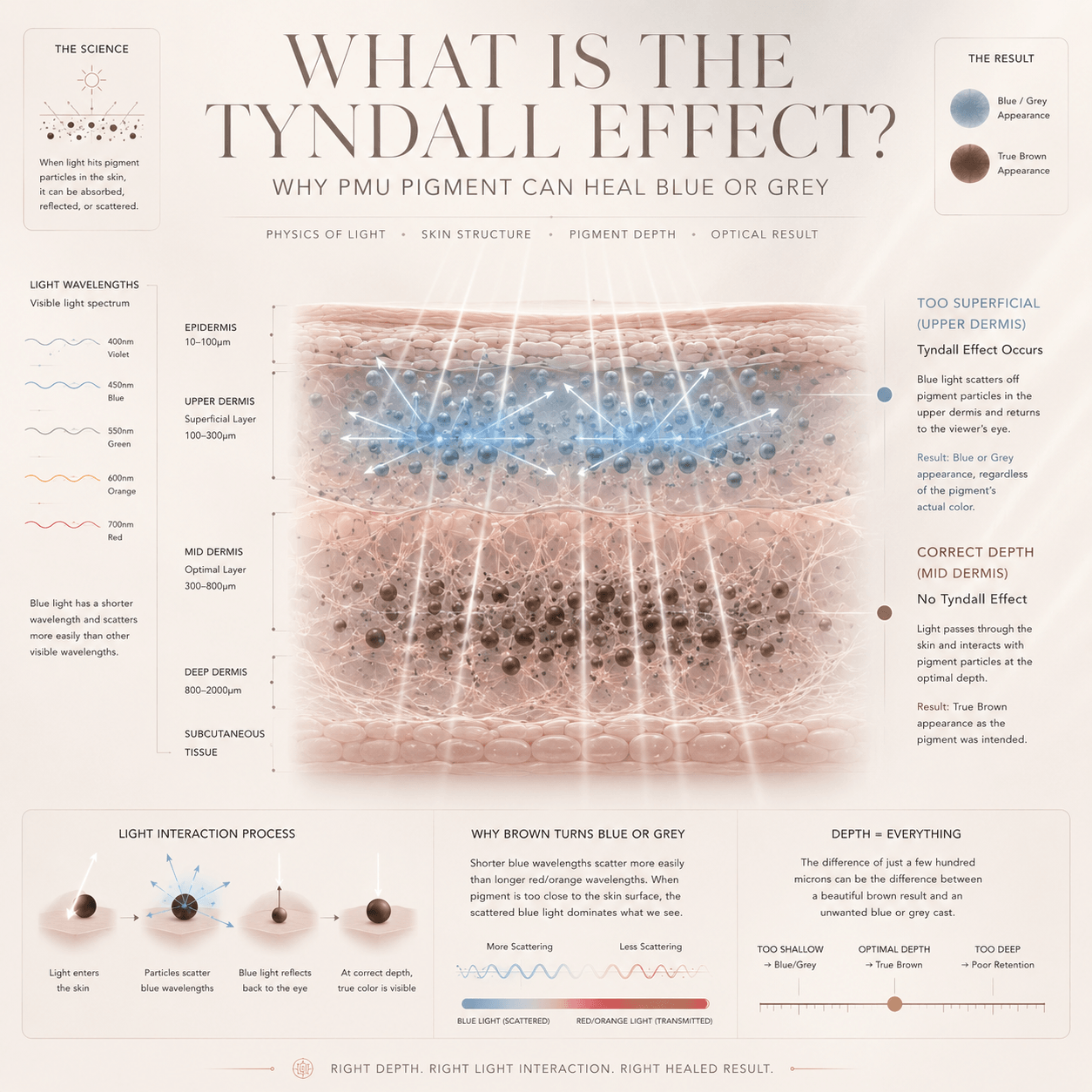

1. The Physics of the Tyndall Effect
The Tyndall effect was first described by physicist John Tyndall in 1869. He observed that when a beam of light passes through a medium containing small suspended particles, the particles scatter the light — and the scattered light appears blue when viewed from the side, while the transmitted light appears orange-red.
This happens because of the relationship between particle size and light wavelength. Visible light is composed of wavelengths ranging from violet (shortest) to red (longest). Small particles — those significantly smaller than the wavelength of visible light — scatter shorter wavelengths (blue and violet) more efficiently than longer wavelengths (red and orange). This selective scattering of short wavelengths is what produces the characteristic blue appearance.
The most familiar everyday example of the Tyndall effect is the blue color of the sky — sunlight scattering off gas molecules in the atmosphere produces the blue appearance when viewed from the side (from Earth), while the sun itself appears orange-red at sunrise and sunset when viewed through a longer path of atmosphere.
In the skin, the same physics applies. When PMU pigment particles are suspended in the upper layers of the dermis — close enough to the skin surface that they are effectively in a semi-transparent medium — they scatter incoming light in the same way. The blue wavelengths scatter back toward the viewer, producing a blue or grey visual appearance over the treated area, regardless of the actual color of the pigment particles beneath.
2. How the Tyndall Effect Occurs in PMU
In PMU, the Tyndall effect is a depth problem. The skin has distinct layers — the epidermis on the surface, the dermis beneath it, and the subcutaneous tissue below that. PMU pigment must be implanted into the upper to mid dermis to heal correctly. The dermis is dense enough to hold the pigment in place and opaque enough to display the pigment’s true color through the overlying epidermis.
When pigment is implanted too superficially — into the epidermis or the very top of the dermis — it sits in a layer of skin that is too thin and too translucent to mask the optical scattering effect. The pigment particles are effectively suspended in a semi-transparent medium close to the skin surface, and the Tyndall effect produces a blue or grey cast over the area.
The actual pigment color — brown, black, or any other shade — is irrelevant to whether the Tyndall effect occurs. What matters is the depth at which the pigment is sitting relative to the skin surface. A brown pigment implanted too superficially will appear blue or grey. The same brown pigment implanted at the correct depth will appear as its true healed brown color.
How Permanent Makeup Pigments Settle in the Skin: Implantation Depth, Healing, and Color Stability
Why Permanent Makeup Pigment Looks Different After Healing
3. Why PMU Brows Turn Blue or Grey: The Tyndall Effect in Practice
The most common presentation of the Tyndall effect in PMU is brows that heal with a blue, grey, or blue-grey cast — particularly in the body of the brow where shading techniques are used. Artists and clients often describe this as the pigment “turning blue” or “going grey” after healing, and it is frequently misattributed to the pigment formula, the client’s skin type, or the healing process.
In reality, the blue or grey appearance is almost always the result of pigment being implanted too superficially during the procedure. The most common causes of superficial implantation include:
- Insufficient needle protrusion: If the needle does not protrude far enough from the cartridge tip, it cannot reach the correct depth in the dermis regardless of machine settings.
- Too-light hand pressure: Particularly in manual techniques, insufficient pressure prevents the needle from penetrating to the correct depth.
- Too-high machine speed with too-fast hand movement: The needle contacts the skin too briefly per pass to implant pigment at the correct depth.
- Working on the epidermis rather than the dermis: Stretching the skin incorrectly or working at an incorrect angle can cause the needle to deposit pigment in the epidermis rather than the dermis.
Why Do Permanent Makeup Brows Turn Blue or Grey Over Time?
Why Do PMU Brows Turn Red, Blue, Green or Violet? The Science Behind Color Shifts
4. The Tyndall Effect vs Other Causes of Blue or Grey PMU
Not every case of blue or grey PMU is caused by the Tyndall effect. Understanding the distinction is important for accurate diagnosis and correct correction approach.
- Tyndall effect: Pigment implanted too superficially. The blue or grey appearance is present immediately after healing and is consistent across the treated area. The pigment itself is the correct color — the optical effect of shallow depth creates the blue appearance. Correction requires deeper implantation of a corrector or cover pigment.
- Pigment color shift over time: Some pigment formulas — particularly those with organic blue or violet components — shift toward blue or grey as the warm components break down faster than the cool components over months and years. This is a formula stability issue, not a depth issue. The blue appearance develops gradually over time rather than being present from the initial healing.
- Inorganic pigment with high black content: Pigments with a high proportion of black iron oxide can heal with a cool, grey-blue cast on some skin types, particularly fair skin. This is a pigment selection issue rather than a depth issue.
The key diagnostic question is timing: if the blue or grey appearance was present from the first healed result, the Tyndall effect is the most likely cause. If it developed gradually over months or years, pigment formula instability or color shift is more likely.
Why Does Permanent Makeup Pigment Turn Grey Over Time?
Do Permanent Makeup Pigments Oxidize Over Time?
5. How to Prevent the Tyndall Effect
The Tyndall effect is entirely preventable through correct implantation technique. The key principles:
- Correct needle protrusion: Set needle protrusion to the appropriate depth for the skin type and technique. Thicker skin requires more protrusion; thinner or more sensitive skin requires less. The needle must reach the upper to mid dermis consistently.
- Consistent skin stretch: Proper skin stretch during the procedure ensures the needle enters the skin at the correct angle and reaches the correct depth. Insufficient stretch allows the skin to move with the needle, reducing effective penetration depth.
- Appropriate machine settings: Voltage and stroke length must be calibrated to deliver the needle to the correct depth with sufficient force. Too-low voltage or too-short stroke with too-fast hand speed can result in superficial implantation.
- Read the skin response: Correct depth implantation produces a specific visual and tactile feedback — slight resistance, minimal bleeding, and pigment that stays in the skin rather than sitting on the surface. Learning to read these signals is the most reliable way to confirm correct depth in real time.
Floating vs Burying Technique in Permanent Makeup: How It Affects Pigment Stability
PMU Voltage Settings Guide for Every Technique
6. How to Correct Existing Tyndall Effect in PMU
When a client presents with blue or grey healed PMU caused by the Tyndall effect, correction is possible but requires careful assessment. The approach depends on the severity of the blue cast and the amount of existing pigment in the skin.
- Allow partial fading first: Superficially implanted pigment fades faster than correctly implanted pigment. Waiting 8–12 weeks after the initial procedure allows some of the superficial pigment to shed, reducing the intensity of the Tyndall effect before correction is attempted.
- Color correction with a warm corrector: Implanting a warm-toned corrector pigment (orange or copper) at the correct depth can neutralize the blue cast using complementary color principles. The corrector must be implanted at the correct depth — not superficially — to be effective.
- Cover with a correctly implanted pigment: Once the blue cast is neutralized or partially faded, a correctly implanted pigment in the desired shade can be applied over the corrected base.
- Laser removal for severe cases: In cases where the Tyndall effect is severe and the existing pigment load is high, laser removal of the superficial pigment may be the most effective first step before any correction procedure.
Color Theory for PMU Artists: The Complete Guide
Conclusion
The Tyndall effect is the optical physics explanation behind one of the most common and misunderstood problems in PMU — brown or black pigment healing with a blue or grey cast. It is not a pigment failure, a skin type issue, or an unpredictable healing variation. It is a depth error: pigment implanted too superficially scatters light in the upper dermis, producing a blue visual appearance regardless of the pigment’s actual color. Understanding the Tyndall effect allows artists to prevent it through correct technique, diagnose it accurately when it occurs, and correct it systematically rather than guessing at the cause.
How to Choose the Best Pigment Formula for PMU
Color Theory for PMU Artists: The Complete Guide
FAQ
What is the Tyndall effect in PMU?
The Tyndall effect in PMU is an optical phenomenon where pigment implanted too superficially in the skin scatters incoming light, producing a blue or grey visual appearance over the treated area. It occurs because small pigment particles in the upper dermis scatter shorter blue wavelengths of light back toward the viewer, while longer red and orange wavelengths pass through. The result is that brown or black pigment appears blue or grey — not because the pigment has changed color, but because of the optical effect of its shallow position in the skin.
Why do my PMU brows look blue or grey after healing?
Blue or grey healed brows are most commonly caused by the Tyndall effect — pigment that was implanted too superficially during the procedure. When pigment sits in the upper dermis rather than the mid dermis, it scatters light and appears blue or grey regardless of its actual color. Less commonly, blue or grey healed brows can result from pigment formula color shift over time (organic components breaking down) or pigment selection issues (high black iron oxide content on fair skin). If the blue or grey appearance was present from the first healed result, the Tyndall effect is the most likely cause.
Is the Tyndall effect permanent?
Not necessarily. Superficially implanted pigment fades faster than correctly implanted pigment, so the Tyndall effect often diminishes over time as the shallow pigment breaks down. However, the rate of fading varies significantly between individuals. In cases where the blue or grey cast is significant and persistent, color correction — using a warm corrector pigment implanted at the correct depth — can neutralize the appearance. Severe cases may benefit from laser removal of the superficial pigment before correction is attempted.
How do I prevent the Tyndall effect in PMU?
The Tyndall effect is prevented by implanting pigment at the correct depth — the upper to mid dermis — consistently throughout the procedure. Key technique factors include correct needle protrusion setting, proper skin stretch to ensure consistent needle angle and depth, appropriate machine voltage and stroke length for the skin type, and learning to read the skin’s response to confirm correct depth in real time. Superficial implantation is most common when needle protrusion is insufficient, hand pressure is too light, or machine speed is too high relative to hand speed.
Can the Tyndall effect happen with any pigment color?
Yes. The Tyndall effect is a physics phenomenon related to implantation depth, not pigment color. Any pigment — brown, black, warm, cool — can produce a blue or grey Tyndall appearance if implanted too superficially. However, the effect is most visually pronounced with darker pigments (brown and black) on fair skin, where the contrast between the blue cast and the surrounding skin is greatest. On deeper skin tones, the Tyndall effect may be less visually obvious but is still present when pigment is implanted too superficially.
