PMU cartridge selection should never be based on the needle count alone. A trained artist must compare the configuration, diameter, taper, cartridge fit, treatment area, intended mark and technique as one system. A 1R is not automatically the best choice for every fine line, and a larger grouping is not automatically faster, safer or more suitable for shading.
This guide explains how to read PMU needle codes, compare common configurations, evaluate 14UX cartridges and match a cartridge to brows, lips, eyeliner, scalp micropigmentation and other professional procedures.
Last reviewed: August 19, 2026
Quick Answer: How Do You Choose a PMU Cartridge Needle?
Choose the intended mark first: a single point, narrow line, soft pixel, broad blend or multi-point hairstroke pattern. Then confirm the exact cartridge is compatible with the machine and intended procedure. Compare configuration, needle diameter, taper, membrane design and product instructions, and test the complete setup during controlled professional practice before using it on a client.
The seven essential checks are:
- Define the procedure and intended mark.
- Confirm the cartridge configuration and exact variant.
- Check diameter and taper instead of using needle count alone.
- Verify physical compatibility with the exact machine or adapter.
- Match the cartridge to the artist’s trained movement and equipment setup.
- Inspect the sterile package, batch or lot information and expiry date.
- Use once, then dispose of the cartridge according to applicable sharps rules.
Important: Needle codes are not completely standardized across every manufacturer. Always read the exact product label and configuration diagram rather than assuming that two cartridges with similar names are identical.
PMU Needle Terminology: What the Code Really Tells You
| Term | What it describes | What it does not prove |
|---|---|---|
| Needle count | The number of individual points in the grouping | The final healed width, depth or amount of pigment deposited |
| Configuration | How the points are arranged, such as round, flat, curved or U-shaped | That the cartridge is suitable for every technique associated with that code |
| Diameter | The nominal thickness of each individual needle | How much tissue response or pigment flow will occur in every setup |
| Taper | The shape and length of the transition toward the needle tip | A universal result such as “fine,” “soft” or “less traumatic” |
| Cartridge type | The housing, connector, membrane and internal drive design | Compatibility with every pen described as a PMU machine |
| Needle protrusion | How far the needle appears outside the cartridge tip during operation | The actual implantation depth in tissue |
A code such as 1R, 3RL, 5RM or 14UX is only the beginning of the selection process. Artists should also confirm the manufacturer’s diagram, diameter, taper, housing and stated intended use.
What Is a PMU Cartridge Needle?
A PMU cartridge is a preassembled module containing one or more needle points inside a disposable housing. Depending on the product, the cartridge may include a tip, internal stabilizing components, a membrane and a connector designed for a particular machine interface.
The cartridge influences how the needle group is supported and how the artist sees and manages pigment at the tip. It does not independently determine implantation depth, retention or healing. Those outcomes also depend on the machine, stroke system, output, hand speed, angle, movement, skin or tissue condition and procedural endpoint.
What Does a Cartridge Membrane Do?
A membrane is designed to separate the cartridge tip area from the machine-side drive system and may help limit fluid movement toward the handpiece. Membrane construction varies between products, so the presence of a membrane should not replace barrier protection, equipment cleaning or the manufacturer’s infection-control instructions.

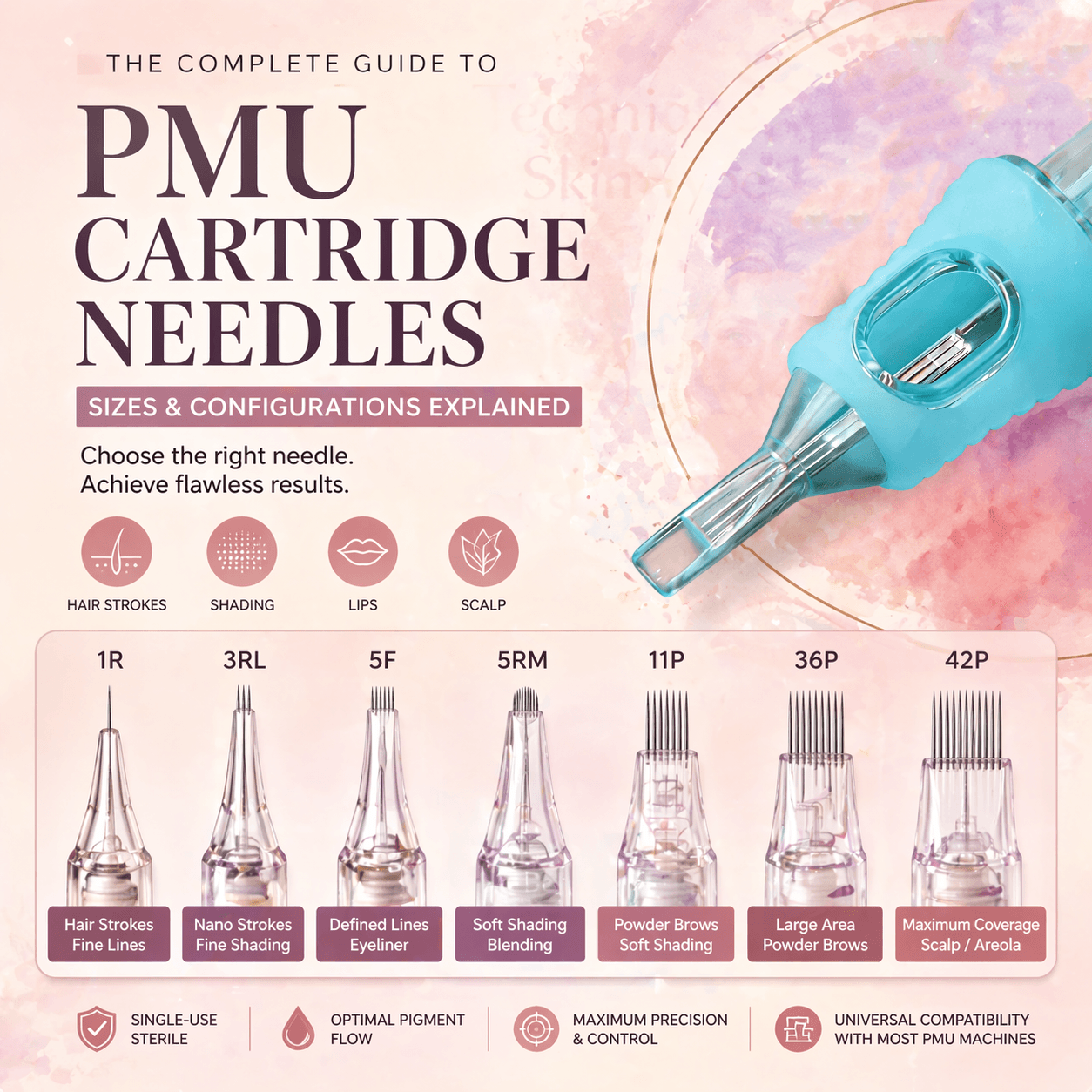

Common PMU Needle Configurations
The following descriptions explain the contact pattern created by common groupings. They are not universal prescriptions. Exact abbreviations and intended uses may differ by brand.
Single Round: 1R or 1RL
A single-round cartridge has one needle point. It creates the smallest single-point contact pattern within a product series and may be selected for machine hairstrokes, fine lining, detail work or small SMP impressions when the exact cartridge is intended for that procedure.
A single point does not automatically create a fine healed line. Line width and quality also depend on diameter, taper, protrusion, machine movement, angle, repetition and tissue response.
Round Liner and Round Groupings
Round liner or round groupings place several needle points in a compact arrangement. Depending on the exact construction, they may be evaluated for lining, small-area shading, pixel work or color building.
The labels 3R and 3RL should not automatically be treated as identical. Check the manufacturer’s configuration diagram and intended-use information for the exact variant.
Flat Configurations
Flat cartridges arrange several points in a row. Their contact pattern can support edge work, controlled sweeps or broader color placement, depending on the configuration and artist’s trained technique.
A flat grouping does not guarantee a sharp eyeliner or brow outline. Artists must still control angle, orientation, overlap and tissue response.
Magnum and Curved Magnum Configurations
Magnum-style groupings distribute multiple points across a wider contact area. A curved or round-magnum arrangement has a different edge profile from a straight flat grouping and may be evaluated for soft shading, blending and broader color placement.
Needle count alone does not establish how quickly color should be built. Cartridge construction, pigment handling, movement and overlap remain important.
Micro, Nano, Pixel or Multi-Point Arrays
Some cartridges use dense multi-point arrays identified by names such as 11P, 36P or 42P. Depending on the product, these may be intended for cosmetic microneedling, serum application or broad-area work rather than pigment implantation.
Do not assume that a larger point array is suitable for powder brows, scalp micropigmentation or areola work simply because it covers a wider area. Confirm the exact product’s intended procedure before use.
U-Shaped and 14UX Configurations
U-shaped configurations arrange multiple points along a curved or angled profile. YDPMU’s current 14UX listing describes a 14-point eccentric U-shaped configuration intended for trained hairstroke work. The code and construction are product-specific; “14UX” should not be treated as a universal industry design shared by every manufacturer.
What Is a 14UX PMU Cartridge?
The YDPMU 14UX is a multi-point U-shaped cartridge rather than a single-round needle. Its contact pattern is designed to support trained machine-hairstroke methods that use the full configuration deliberately.
It should not be presented as a replacement for every hairstroke needle or as a cartridge for every PMU area. A multi-point U-shaped cartridge and a 1R create fundamentally different contact patterns and require different movement control.
| Comparison | Single-round cartridge | YDPMU 14UX cartridge |
|---|---|---|
| Contact pattern | One point | Multi-point eccentric U-shaped grouping |
| Typical evaluation | Individual fine marks, lines or dots | Specialized machine-hairstroke movements |
| Movement | Artist constructs the mark point by point | Artist controls the orientation and contact of the complete grouping |
| Learning requirement | Training for the selected single-point technique | Specific practice with U-shaped cartridge orientation and movement |
| Best choice? | Depends on the target mark and system | Depends on the target mark and system |
Claims such as “line and shade in one pass,” “less trauma,” “faster healing” or “better retention” cannot be guaranteed by the 14UX configuration alone. The result still depends on machine compatibility, movement, pressure, overlap, implantation and the client’s response.
Artists interested in this configuration can review the YDPMU 14UX PMU Needle Cartridges and contact YDPMU with the exact machine model when compatibility is uncertain.
Needle Diameter: Important, but Not a Standalone Result Predictor
Needle diameter describes the nominal thickness of each point. Within an otherwise comparable product series, changing diameter changes the physical contact geometry. However, diameter by itself does not determine healed line width, pigment delivery or tissue response.
The final behavior is affected by:
- Needle count and arrangement
- Taper and tip geometry
- Cartridge stability and membrane resistance
- Machine stroke and output
- Needle protrusion
- Hand speed, pressure, angle and movement
- Pigment viscosity and preparation
- Treatment-area characteristics
- Repeated contact and overlap
A finer diameter is therefore not automatically gentler, and a wider diameter is not automatically more traumatic. Repetition, poor angle, excessive pressure or an unsuitable machine-and-cartridge combination can make any configuration inappropriate.
Needle Protrusion Is Not Implantation Depth
Needle protrusion is the visible distance between the needle tip and cartridge tip during operation. Implantation depth describes what happens during contact with tissue. These are related setup variables, but they are not the same measurement.
The skin or lip surface moves under pressure, and the machine is also moving while the artist changes angle, hand speed and contact. A visible protrusion setting cannot guarantee a fixed depth in living tissue.
For a procedure-specific explanation, read Lip Blush Needle Depth Guide: Protrusion vs Implantation.
How to Match a Cartridge to Each PMU Technique
| Procedure | Contact pattern to evaluate | Do not assume |
|---|---|---|
| Machine hairstrokes | Single-point or a specialized multi-point hairstroke configuration used within the artist’s trained method | Every small-diameter 1R or U-shaped cartridge creates the same healed stroke |
| Powder and ombré brows | Compact round or suitable shading groupings that support controlled pixels and gradients | A larger grouping automatically creates a softer gradient or requires fewer passes |
| Lip blush | Single-point, round, flat or magnum-style options according to contour, transition and fill technique | One cartridge is best for the entire lip or that lower machine output automatically means shallower implantation |
| Eyeliner | Procedure-specific fine-line or shading configuration selected for the planned eyeliner style | Any cartridge described as a liner is suitable for use around the eyes |
| Scalp micropigmentation | A controlled small-point configuration capable of producing the intended healed impression | A broad multi-point array is interchangeable with an individual follicle-style dot |
| Areola or camouflage | Procedure-specific lining and shading configurations within appropriate professional training | The widest available grouping is automatically the most efficient or suitable |
There is no responsible universal chart that can select a cartridge without knowing the exact product, machine, technique and client. Tables should narrow the options; controlled testing and training should make the final decision.
How Cartridge Choice Interacts With the Machine
The cartridge does not operate independently. Machine stroke, drive characteristics, output, cartridge resistance and artist movement combine to create the working feel and mark.
Changing from one cartridge configuration or series to another may require the artist to reassess:
- How the cartridge seats and locks into the machine
- Whether the drive bar engages correctly
- Whether the needle cycles smoothly without visible instability
- The effective protrusion range
- Machine output in relation to hand speed
- Pigment pickup and flow at the tip
- The visual mark produced on a consistent practice surface
Do not copy a voltage or speed from another artist solely because the same needle code is listed. For the complete interaction framework, read PMU Voltage Settings: Output and Hand Speed Guide and Machine, Needle or Pigment: What Impacts PMU Results?.
Universal vs Machine-Specific PMU Cartridges
“Universal” describes a commonly used connection format; it does not guarantee identical fit or performance on every machine. Tolerances, drive systems, grip geometry and adapters can differ.
Before ordering or using a cartridge:
- Identify the exact machine model.
- Check the cartridge connection specified for that model.
- Confirm whether an adapter or replacement grip is required.
- Insert and lock the cartridge without forcing it.
- Run a visual function check away from the client.
- Confirm stable cycling and an appropriate protrusion range.
- Contact the machine or cartridge supplier if compatibility remains uncertain.
A cartridge that can be physically inserted is not necessarily an appropriate operational match.
How to Test a New Needle Configuration
Controlled practice helps the artist understand what changed. Avoid replacing the machine, cartridge, pigment and movement at the same time.
- Select one target mark, such as a line, pixel, pendulum shade or dot.
- Record the exact machine, cartridge series, configuration and diameter.
- Use a consistent practice surface and pigment.
- Begin with a trained baseline setup appropriate to the system.
- Observe cartridge stability, pigment pickup, line or pixel shape and surface response.
- Change only one variable at a time.
- Repeat the test instead of judging from one mark.
- Record the final setup and any limitation observed.
Practice material cannot reproduce living tissue or healing, but it can reveal incompatible fit, unstable cycling and major differences in contact pattern before professional use.
YDPMU Cartridge Systems to Compare
| YDPMU system | Current configurations to review | Selection reminder |
|---|---|---|
| Pink Crystal Universal Cartridge | Single-round, round-liner, flat, round-magnum and multi-point options depending on the selected variant | Check the exact configuration, diameter and intended use shown on the current product page |
| Gray Flex Universal Cartridge | Current listing includes 1R, 3R and 5R options in specified diameters | Confirm the selected variant rather than relying on the series name |
| YDPMU 14UX Cartridge | Product-specific 14-point eccentric U-shaped configuration | Use within trained hairstroke methods and confirm machine compatibility |
Browse YDPMU PMU Cartridge Needles
Product ranges and variants may change. Use the current product page and supplied label as the final source for box quantity, configuration, diameter, compatibility and intended-use information.
Single-Use, Package Inspection and Sharps Disposal
Use a new, sterile, single-use cartridge for each client and procedure. Before setup, confirm:
- The individual package is sealed and undamaged.
- The product name and configuration match the planned setup.
- The lot or batch information is readable.
- The expiry date has not passed.
- The cartridge shows no visible damage or contamination.
Do not clean, disinfect or re-sterilize a cartridge labeled for single use. After treatment, place the used cartridge directly into an approved puncture-resistant sharps container and follow applicable local workplace and regulated-waste requirements.
United States studios should review the OSHA Bloodborne Pathogens Standard. The CDC guidance on regulated medical waste also describes point-of-use puncture-resistant disposal for used sharps. Requirements vary by location, so artists must follow the rules that apply to their business.
Common PMU Needle-Selection Mistakes
- Choosing by needle count without checking the arrangement
- Assuming similar codes mean identical construction across brands
- Treating a smaller diameter as automatically gentler
- Treating a larger grouping as automatically faster or more efficient
- Confusing visible protrusion with implantation depth
- Using the same cartridge recommendation for every treatment area
- Calling a cartridge universal without checking the exact machine
- Copying another artist’s voltage, speed or pass count
- Using a broad multi-point array for pigment implantation without confirming intended use
- Reusing or attempting to reprocess a single-use cartridge
- Using a cartridge with damaged packaging, missing identification or an expired date
Professional PMU Cartridge Selection Checklist
Before opening the package, confirm:
- What exact mark must this cartridge create?
- Is the configuration intended for this procedure?
- What are the needle count, arrangement, diameter and taper?
- Does the exact cartridge fit and cycle correctly in the machine?
- Has the artist trained and practised with this contact pattern?
- Are the package, seal, lot and expiry information acceptable?
- Are barriers, disposal equipment and treatment records ready?
- Has the setup been tested without relying on a universal voltage or pass count?
Frequently Asked Questions
Which PMU needle is best for machine hairstrokes?
There is no single best cartridge for every hairstroke method. Some artists use a single-round cartridge to construct individual marks, while others train with specialized U-shaped or multi-point configurations. Compare the intended mark, diameter, taper, machine fit and artist’s trained movement.
Is 1R the same as 1RL?
Not necessarily. Both labels often describe a single-point cartridge, but naming, taper, diameter and construction can differ by manufacturer. Confirm the exact product specifications rather than relying on the abbreviation alone.
Does a smaller needle diameter cause less skin trauma?
Not automatically. Diameter changes contact geometry, but tissue response also depends on taper, configuration, machine behavior, protrusion, angle, pressure, hand speed, repetition and the treatment area.
Can a 14UX cartridge be used instead of a 1R?
They are not direct substitutes. A 1R has one point, while YDPMU’s 14UX has a multi-point U-shaped contact pattern. Each requires a different trained movement and creates a different type of mark.
Can one cartridge configuration be used for brows, lips and eyeliner?
Only if the exact product is intended for those procedures and the artist is trained to use it appropriately. Sharing a configuration name does not make every cartridge or technique interchangeable across treatment areas.
Are universal PMU cartridges compatible with every machine?
No. Universal describes a common format, but machines, grips, drive systems and tolerances differ. Verify the exact machine model, adapter requirements, fit and cycling before use.
How often should a PMU cartridge be replaced?
A cartridge labeled as sterile and single-use should be used for one client and one procedure, then placed in an appropriate sharps container. Do not save, clean or reprocess it for another appointment.
Do more needles mean more pigment and fewer passes?
Not as a universal rule. A larger grouping changes the contact area, but pigment delivery also depends on cartridge construction, pigment, machine setup, movement and overlap. The appropriate endpoint cannot be determined by needle count alone.
What is the difference between needle protrusion and implantation depth?
Protrusion is the visible extension of the needle beyond the cartridge tip. Implantation depth is what occurs during moving contact with tissue. Pressure, angle, machine movement, hand speed and tissue response mean the two are not equal measurements.
Conclusion
The best PMU cartridge is not the finest needle, the largest grouping or the newest configuration. It is the exact cartridge that matches the intended mark, treatment area, machine system, trained technique and professional safety requirements.
Read every code as part of a complete specification. Confirm the configuration, diameter, taper, connector, package and intended use; test the full setup; and judge performance through controlled practice and healed-result review rather than universal charts or trend claims.
