YDPMU DEMO Pro Wireless PMU Machine – Adjustable 2.5–3.5mm Stroke

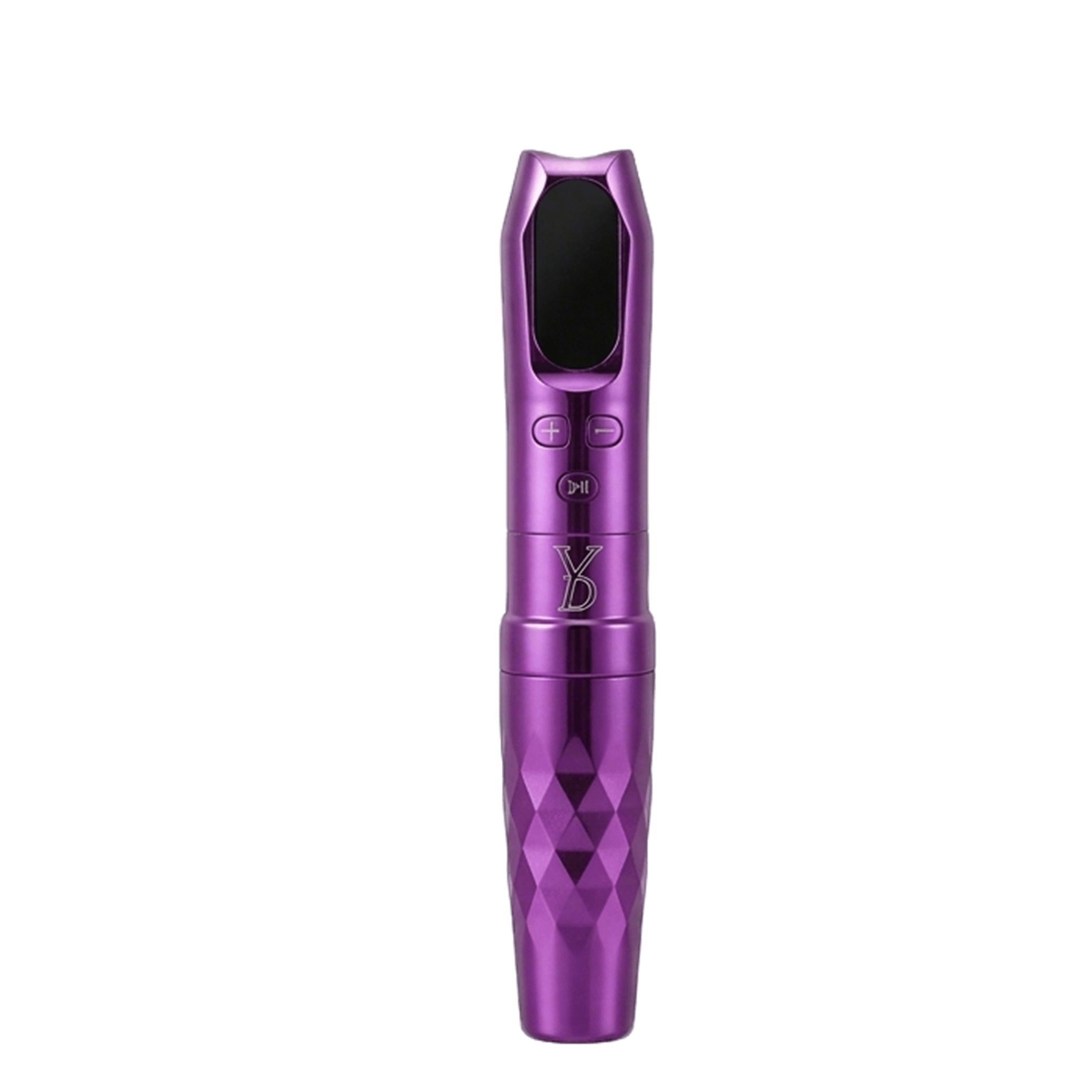

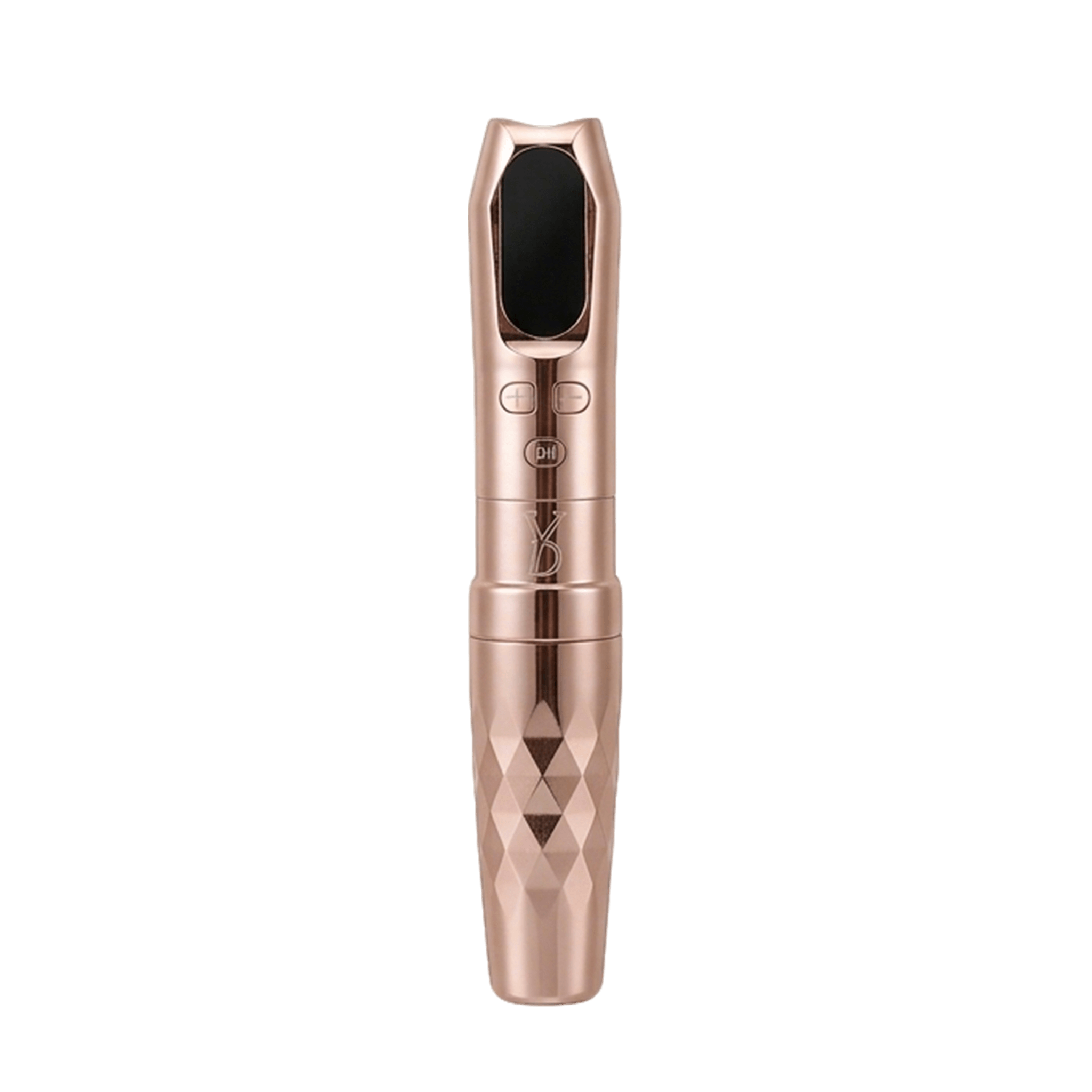

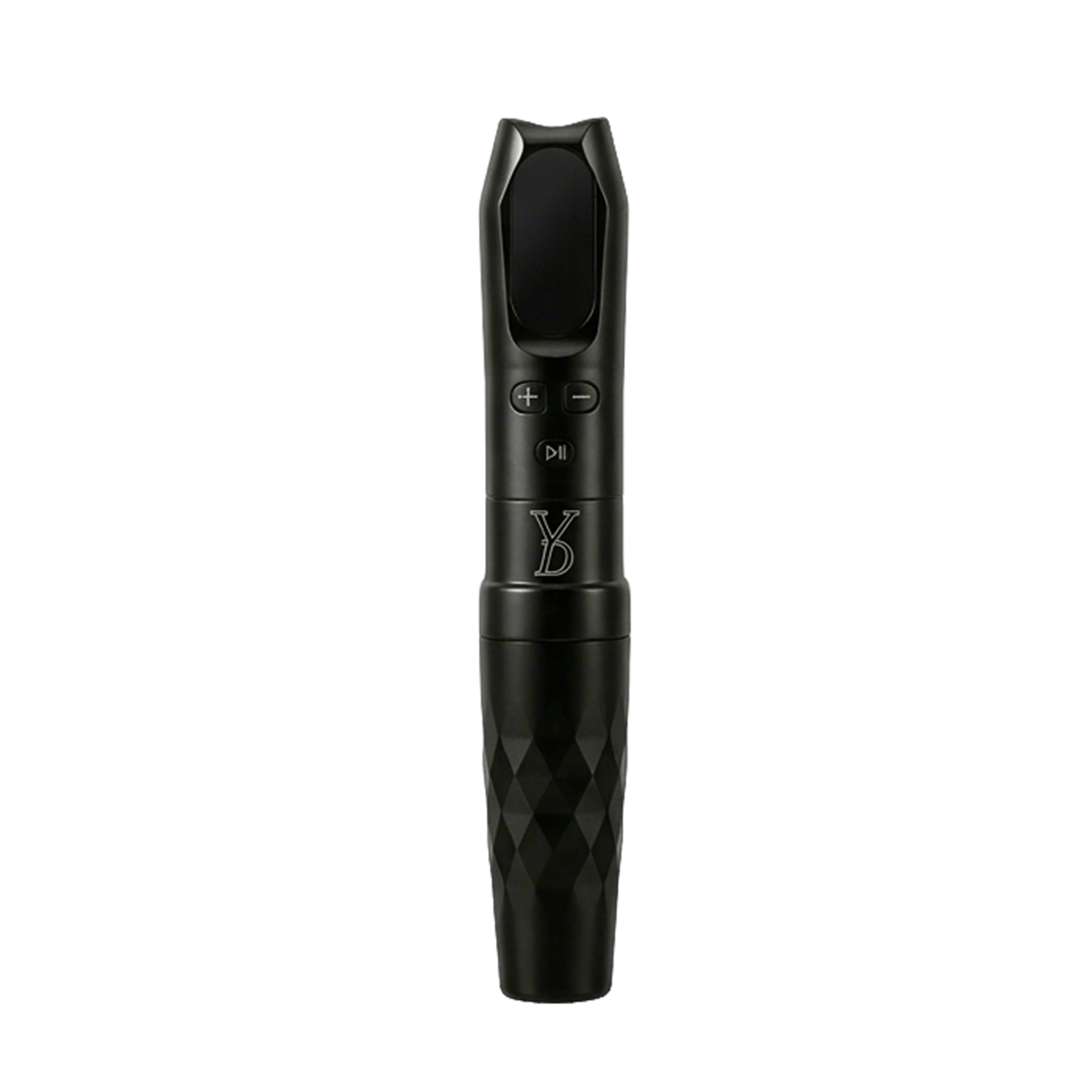

YDPMU DEMO Pro Wireless PMU Machine

The YDPMU DEMO Pro Wireless PMU Machine is an adjustable-stroke permanent makeup machine designed for professional artists working across brows, lips, eyeliner, scalp micropigmentation and areola procedures.

Its continuously adjustable 2.5–3.5mm stroke allows artists to change the machine’s drive characteristics for different working styles. The DEMO Pro also combines precise 2–10V control, a replaceable 700mAh magnetic battery and RCA wired backup capability in one compact handpiece.

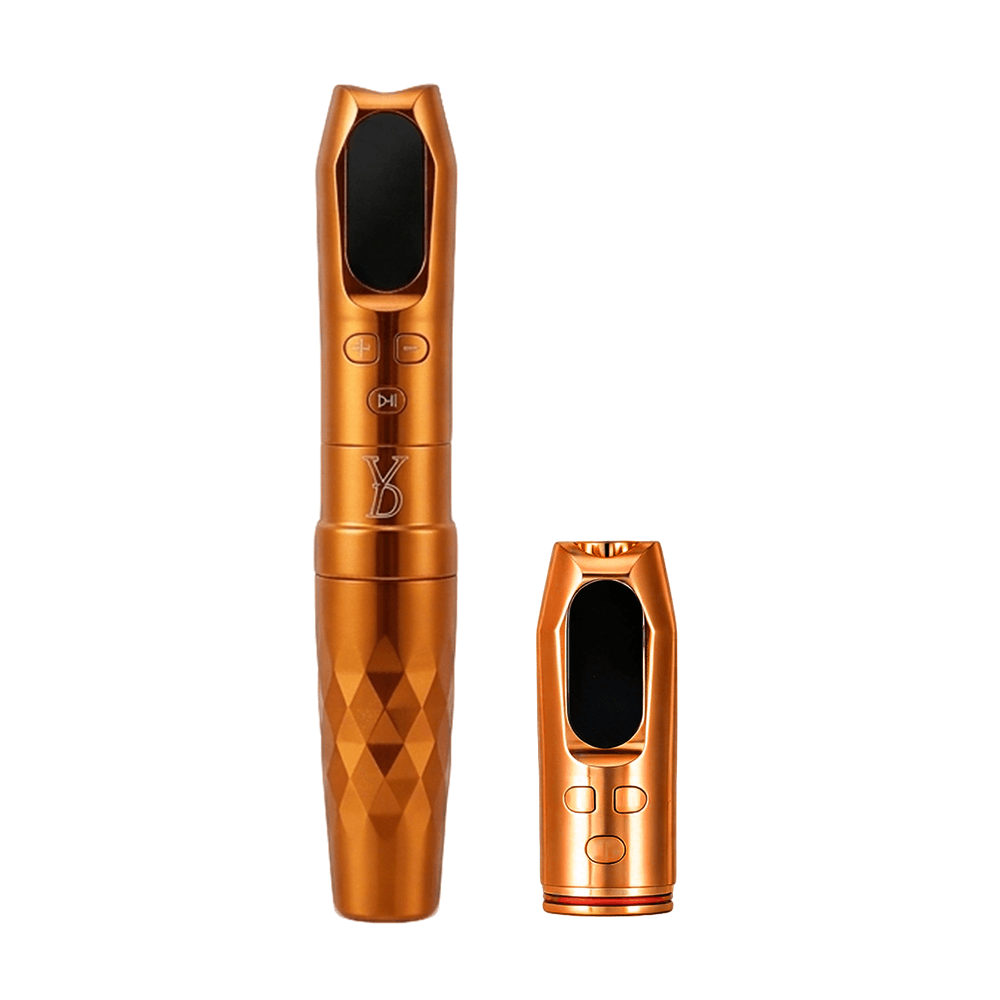

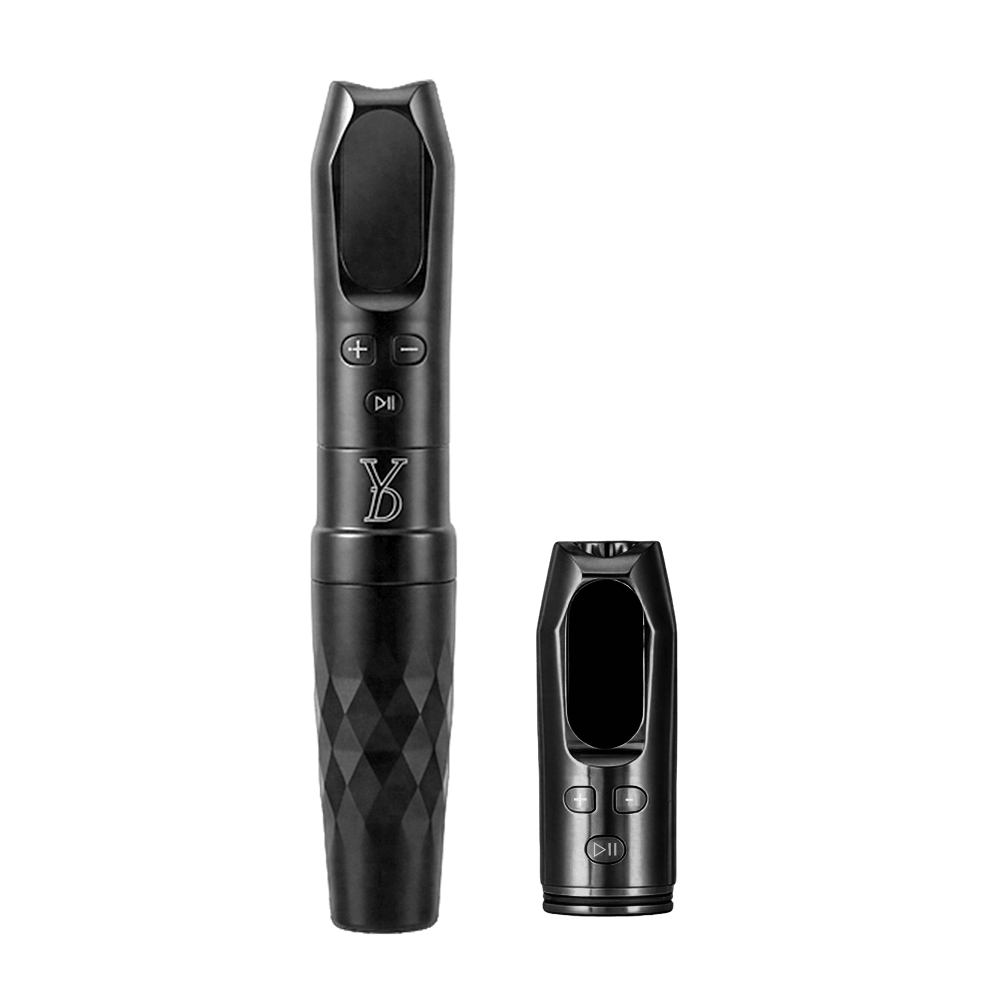

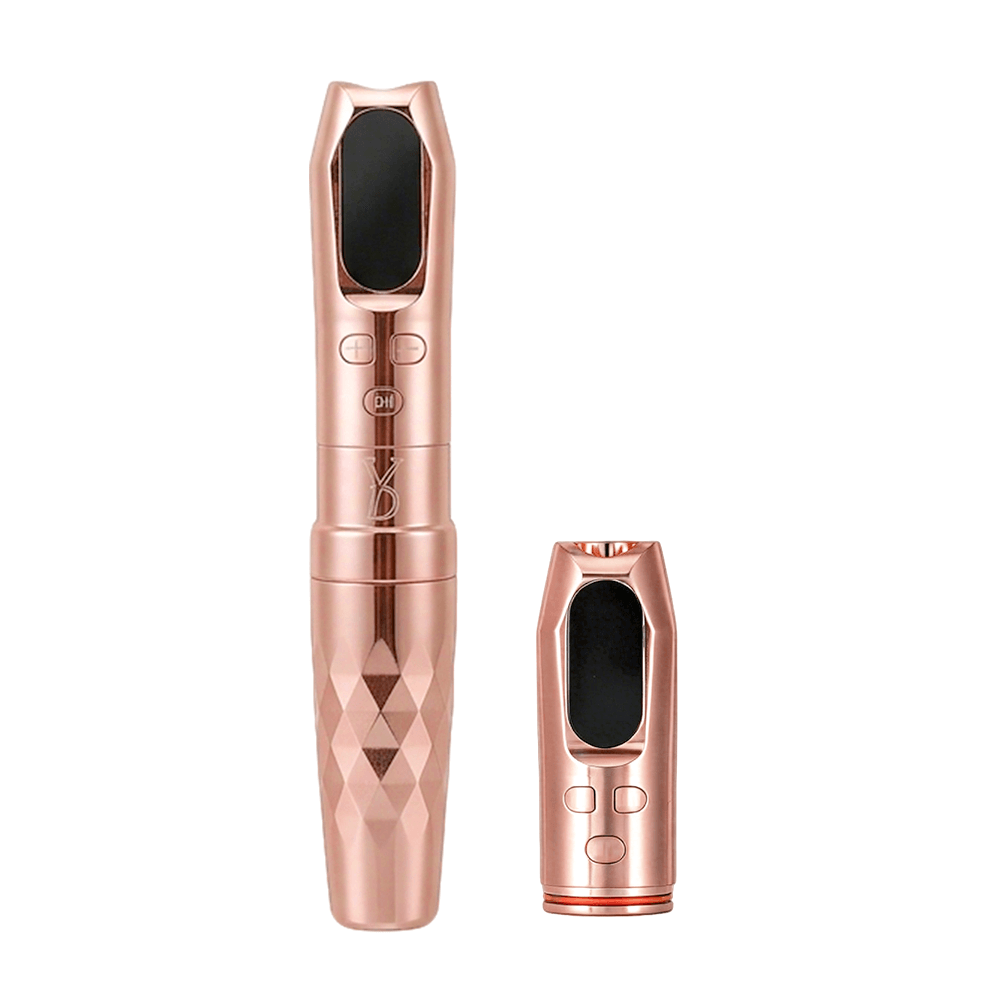

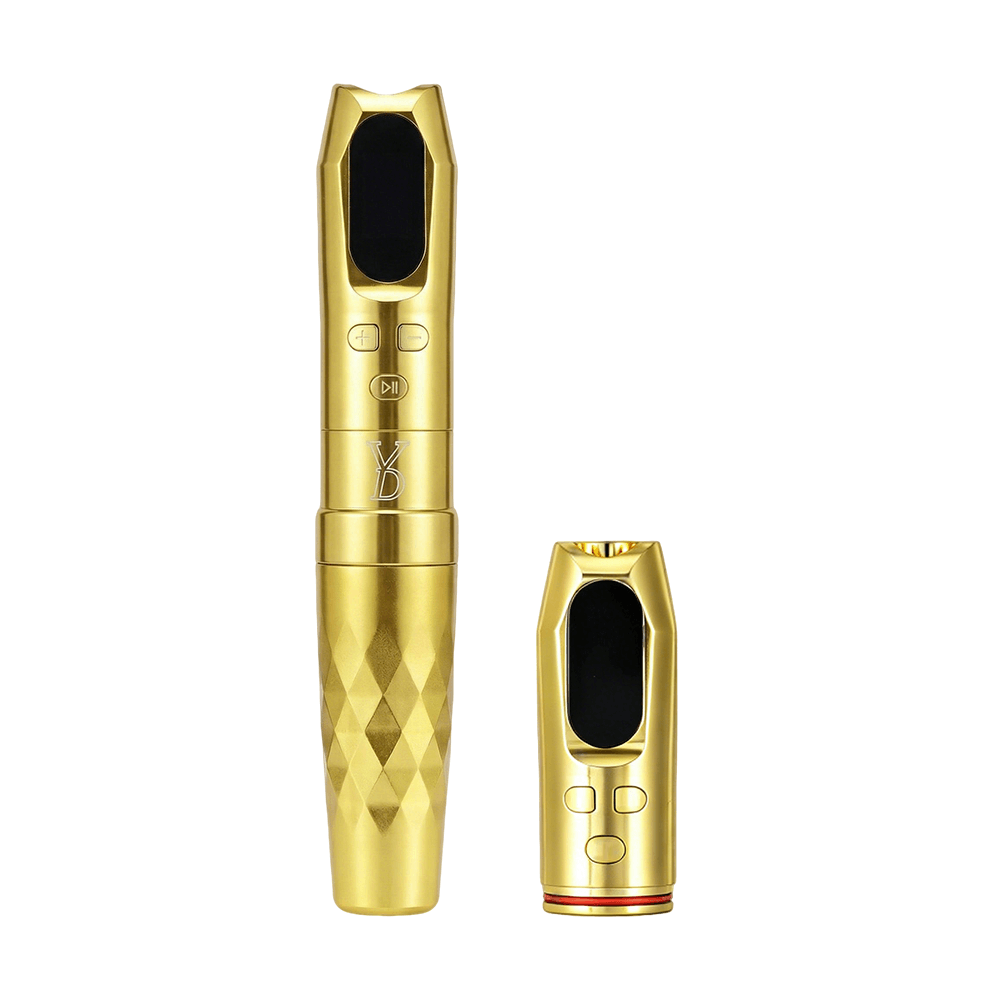

Choose between the Single Battery option for a lighter standard setup or the Dual Battery option for longer schedules and convenient battery replacement between appointments.

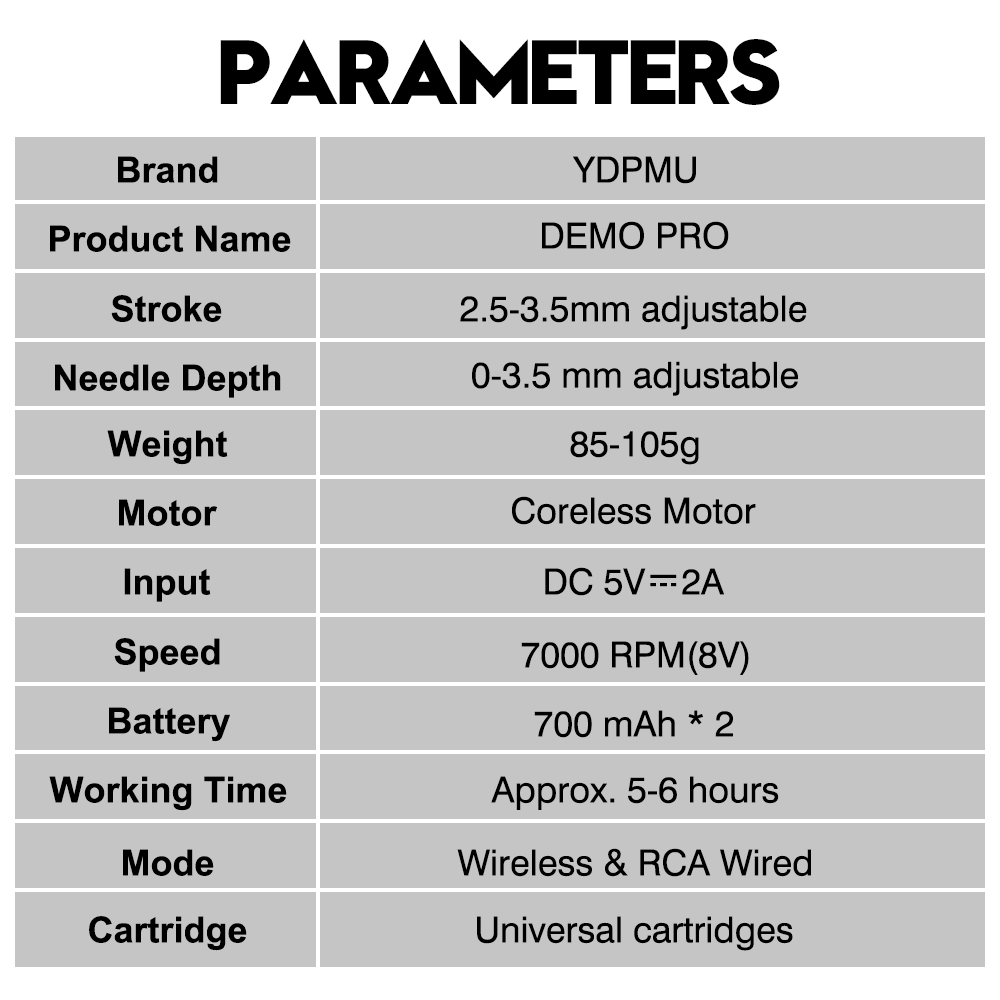

Quick Product Summary

Why Choose the DEMO Pro?

• Continuously adjustable 2.5–3.5mm stroke for different PMU working styles
• 2–10V control with precise 0.1V adjustments

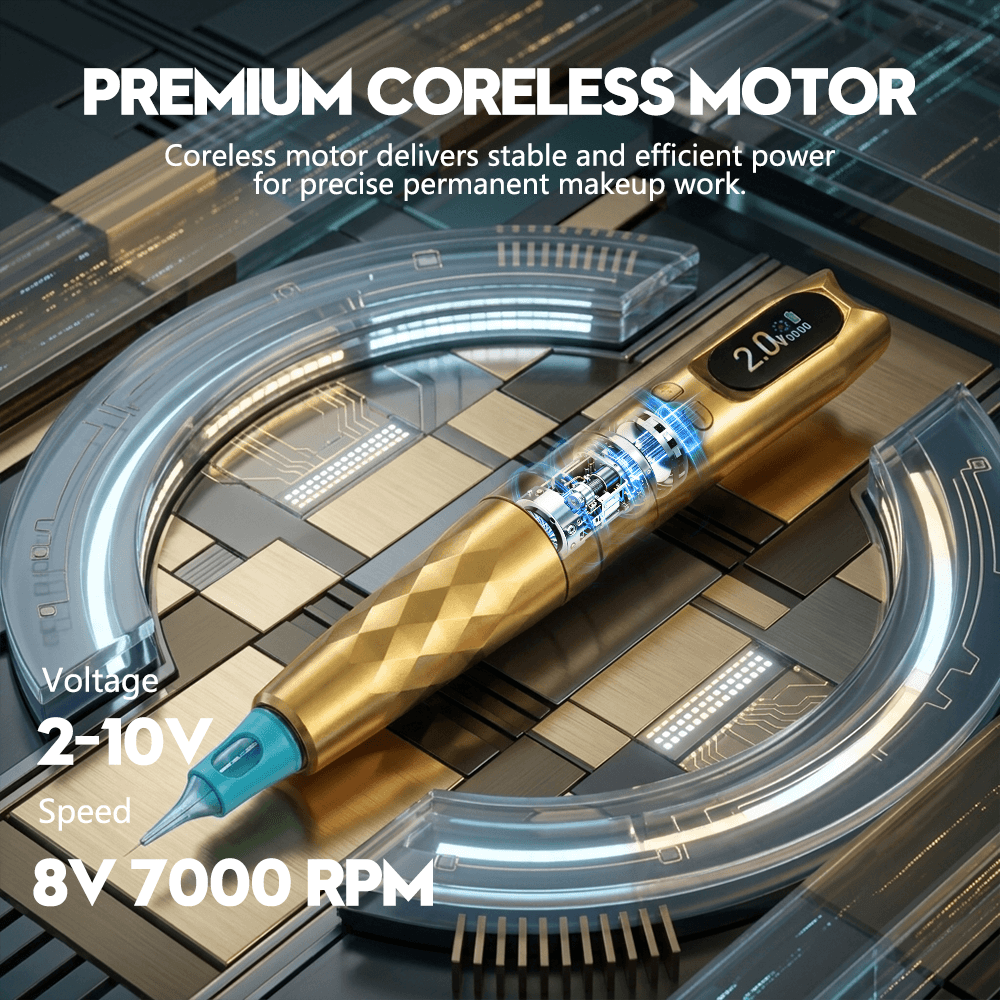

• Coreless motor delivering up to 7,000 RPM at 8V

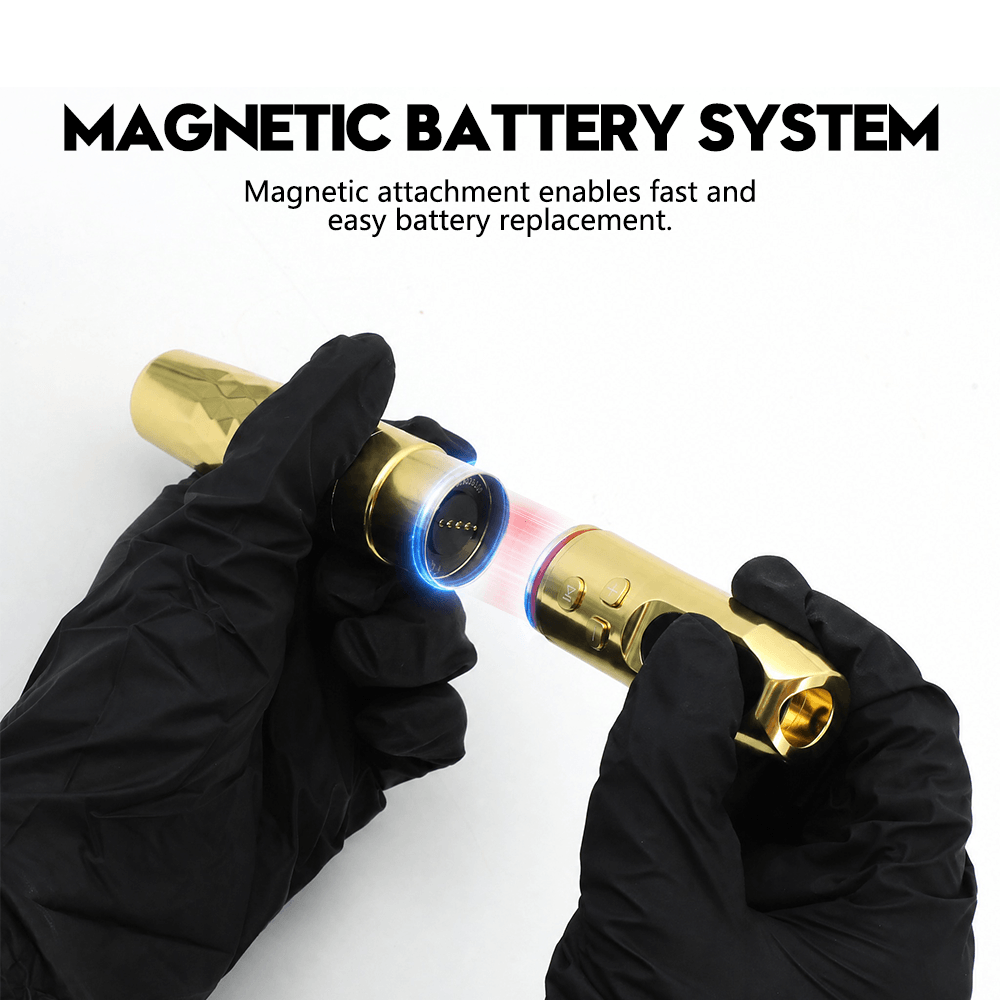

• Replaceable magnetic battery for quick and convenient battery changes
• Single- and dual-battery options for different appointment schedules
• Wireless operation with RCA wired backup
• Universal-style cartridge compatibility

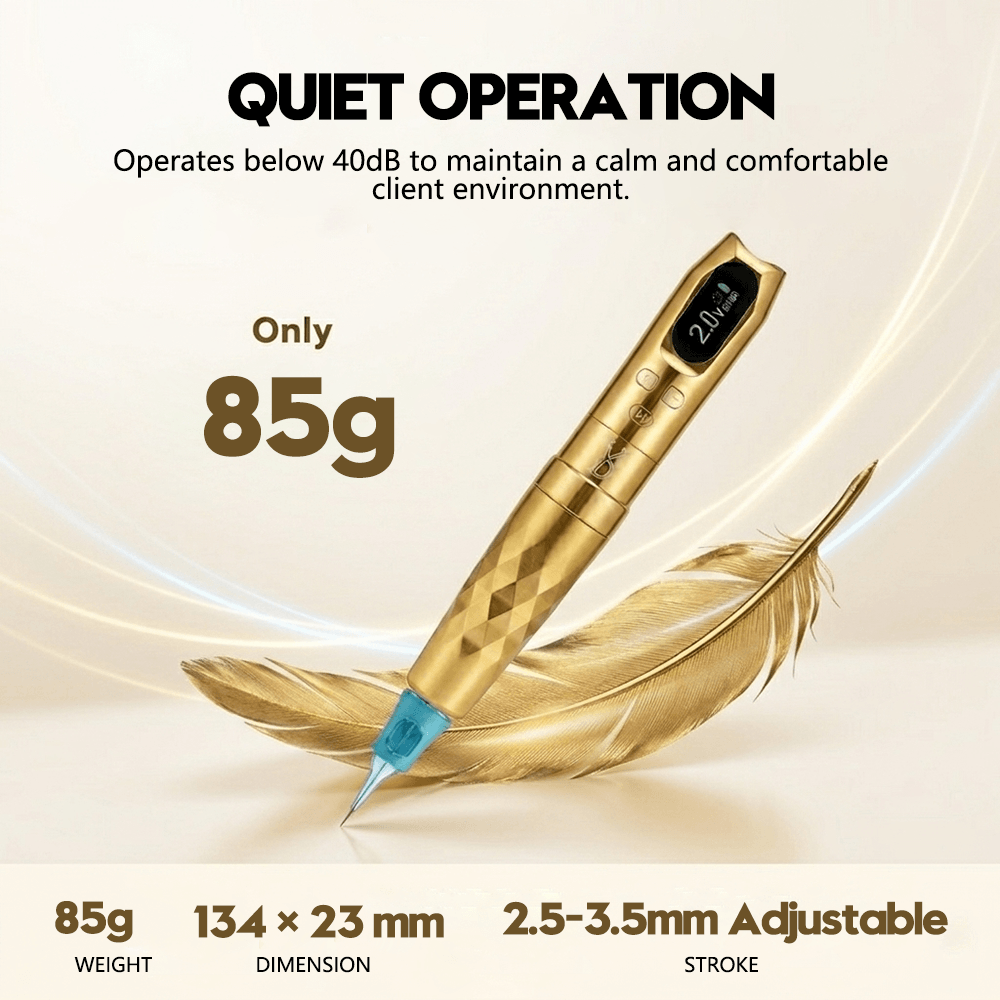

• Designed for a quieter and more controlled operating experience

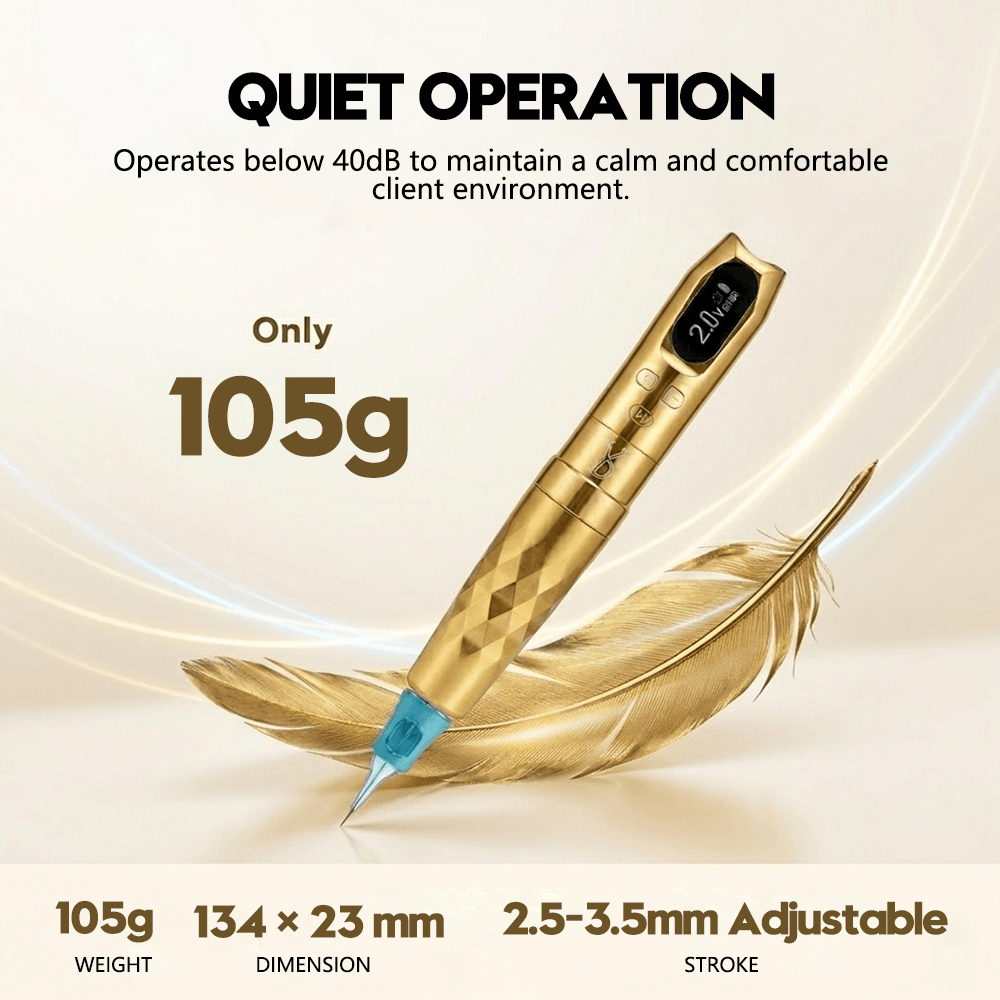

• Compact operating weight of approximately 105g with one battery installed

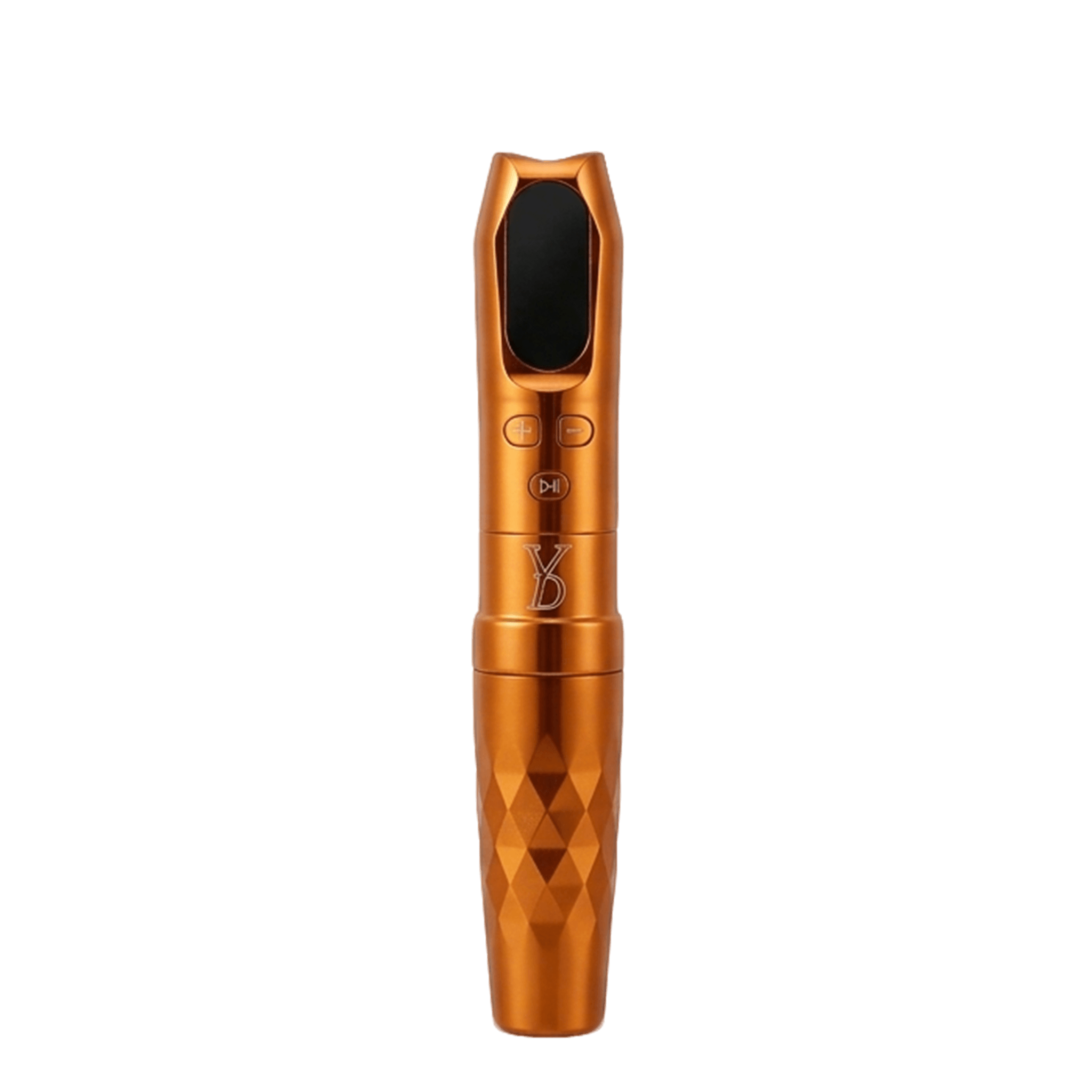

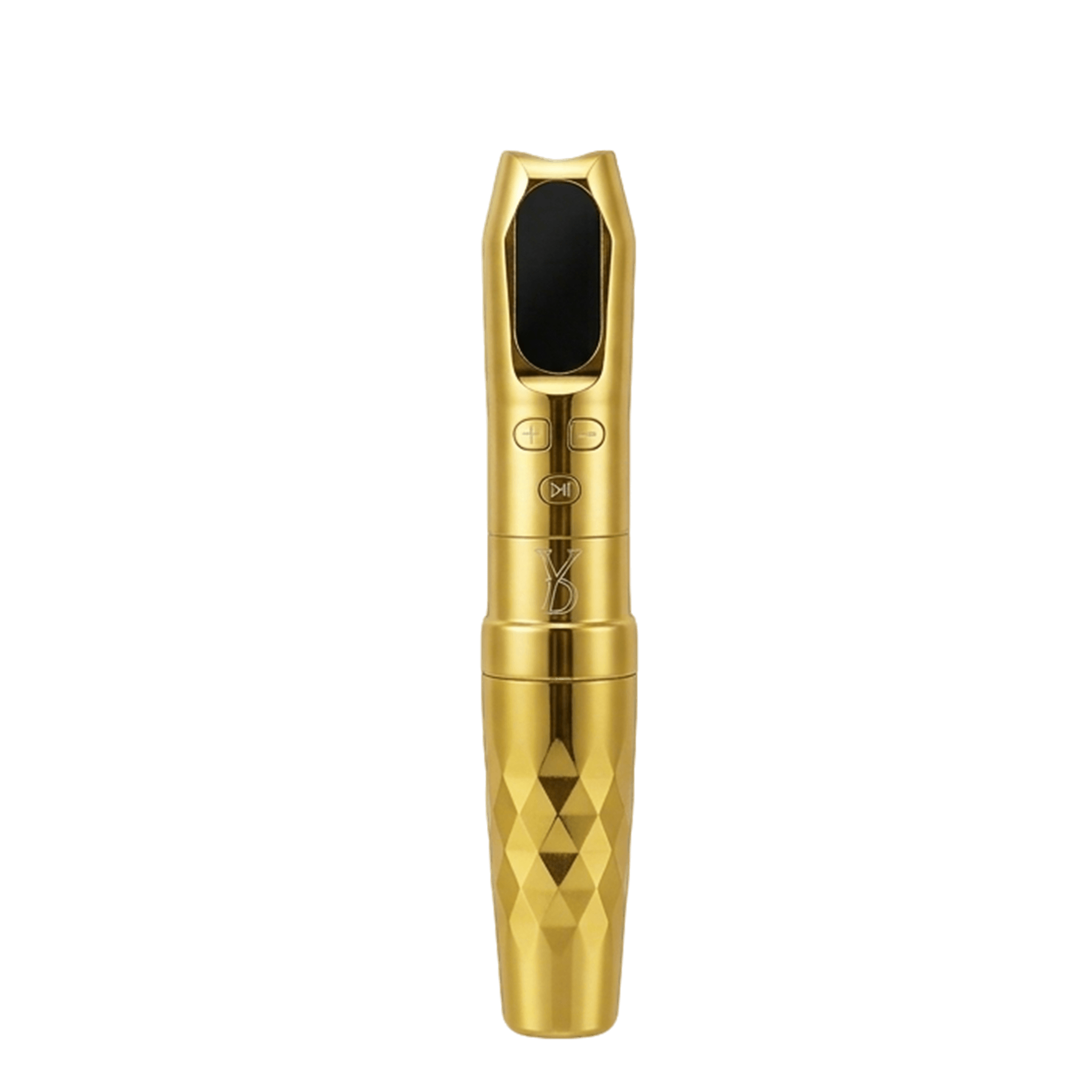

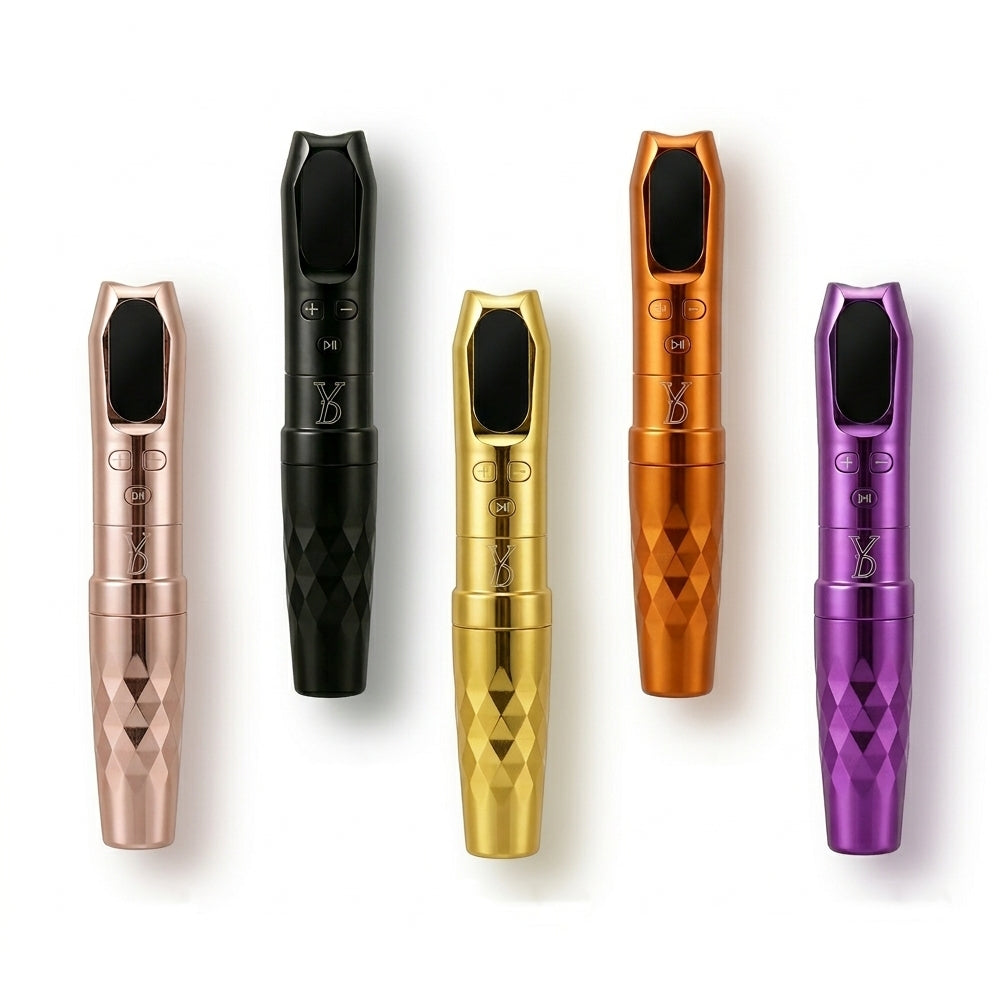

• Available in five professional colors

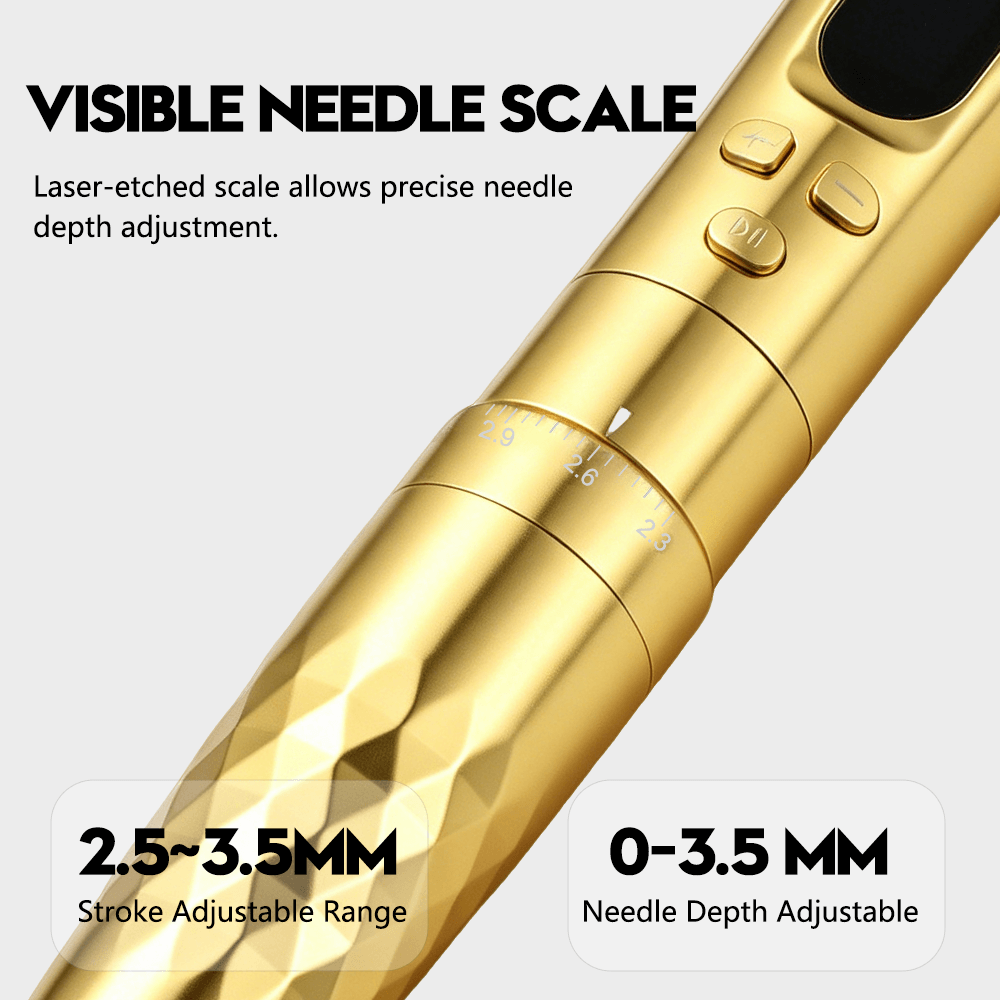

Continuously Adjustable 2.5–3.5mm Stroke

The DEMO Pro uses a continuous mechanical stroke adjustment range. It is not limited to fixed 2.5mm, 3.0mm and 3.5mm preset positions.

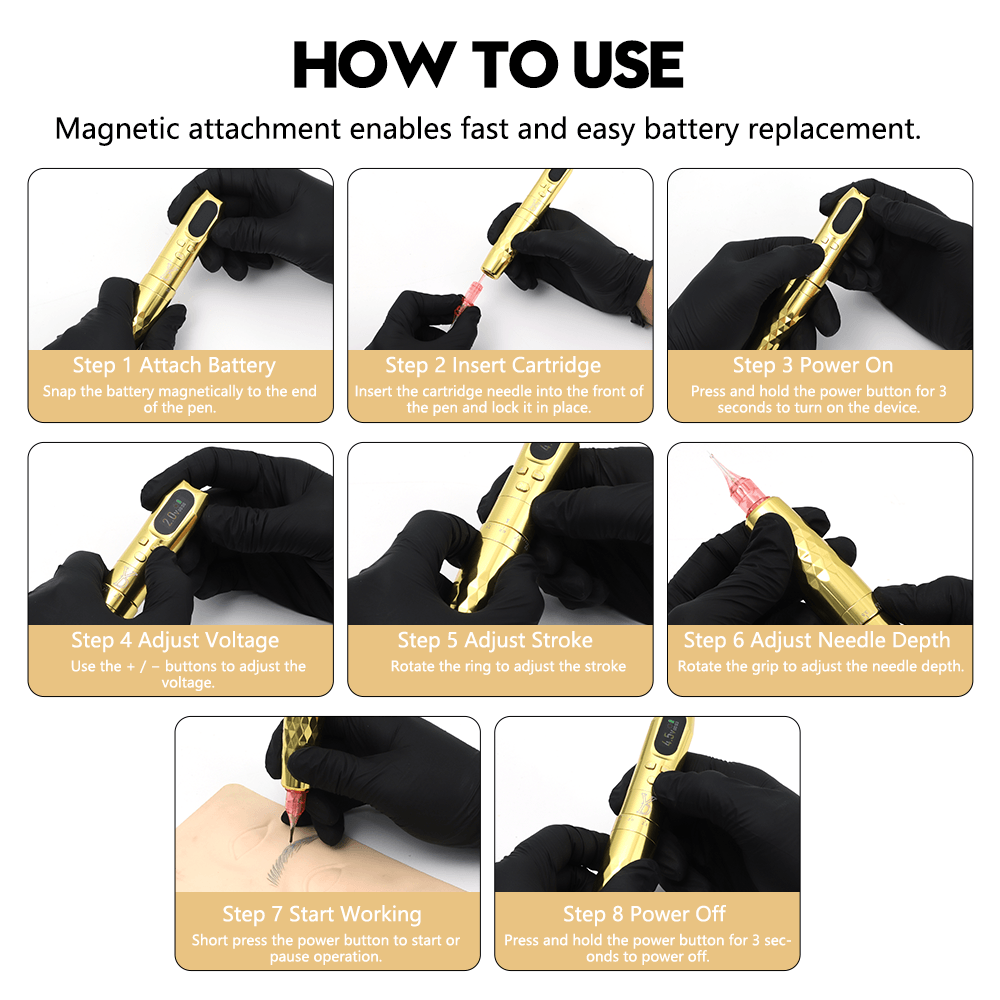

With the motor stopped, rotate the stroke adjustment ring to select a position anywhere within the 2.5–3.5mm range. This gives trained artists greater control when adapting the machine to different cartridges, techniques and working preferences.

Shorter stroke positions within the range may support controlled detail work, while longer positions may provide a more pronounced drive for shading and saturation-focused workflows. The correct setting depends on the selected cartridge, treatment area, tissue response and the artist’s professional technique.

Important Stroke and Needle-Depth Note

Stroke length does not directly determine pigment implantation depth. Stroke changes the machine’s drive characteristics and needle travel. Needle protrusion, hand speed, machine angle, technique and tissue assessment must be controlled separately by a trained professional.

Single Battery vs Dual Battery

Both options include the same DEMO Pro handpiece and accessories. The only package difference is the number of magnetic batteries included.

Runtime is an estimate. Actual operating time may vary according to voltage, cartridge resistance, battery condition and working habits.

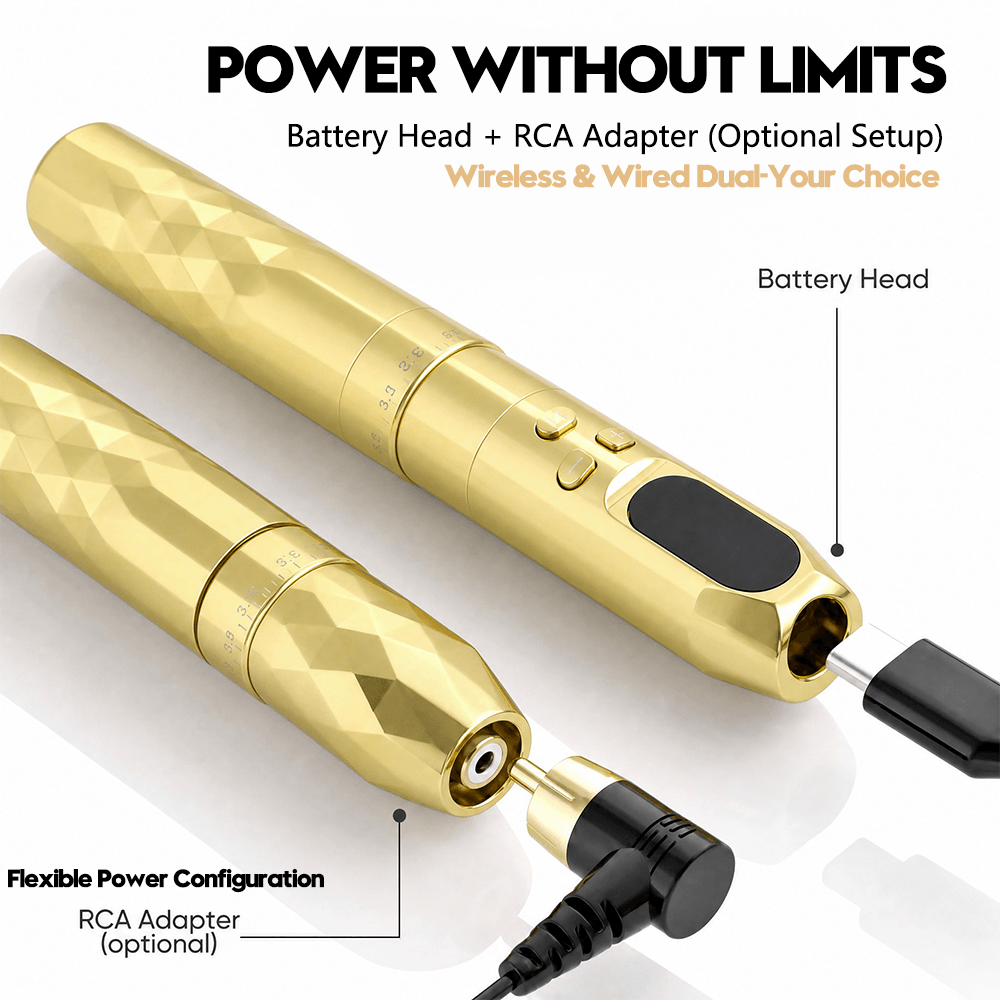

Wireless and RCA Wired Operation

Use the DEMO Pro wirelessly with its magnetic battery for a cable-free setup. When wired operation is preferred, remove the battery, connect the included RCA adapter and connection cable, and use the machine with a compatible external PMU power supply.

Please note: The RCA adapter and connection cable are included. A separate external PMU power supply is not included.

Compatible PMU Techniques

The adjustable stroke and voltage range make the DEMO Pro suitable for trained professionals working with multiple PMU procedures, including:

• Nano brows and machine hair strokes
• Powder brows and ombré brows
• Lip blush
• Permanent eyeliner
• Scalp micropigmentation
• Areola restoration

Technique suitability depends on cartridge selection, pigment, machine configuration, treatment area, tissue assessment and the artist’s professional training.

Universal PMU Cartridge Compatibility

The DEMO Pro is compatible with standard universal-style PMU cartridges. Verified YDPMU configurations include 1RL, 3RL, 5RL, 5F, 7F, 9U, 11U, 18U, 14UX and nano options.

Always confirm that the selected cartridge fits securely and is undamaged before operation. Cartridge needles are sold separately and are not included with the machine.

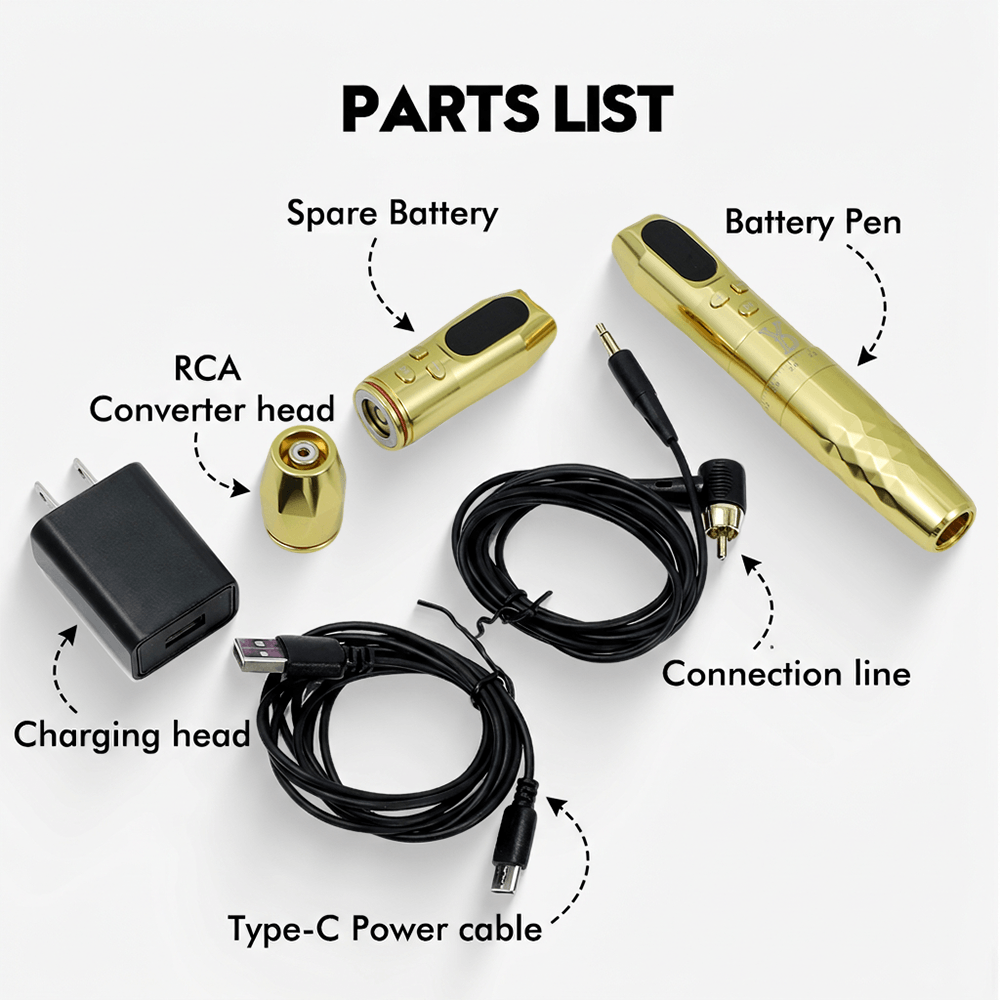

What’s Included?

• YDPMU DEMO Pro wireless handpiece × 1
• 700mAh magnetic battery × 1 with the Single Battery option
• 700mAh magnetic batteries × 2 with the Dual Battery option
• RCA adapter × 1
• Connection cable × 1
• Type-C charging cable × 1
• Quick charger/charging plug × 1

Needle cartridges and an external PMU power supply are not included.

Who Is the DEMO Pro Designed For?

• Professional artists working across brows, lips, eyeliner and SMP
• Artists who want adjustable stroke without changing machines
• Mobile PMU artists who prefer a wireless setup
• Studios requiring both wireless operation and RCA wired backup
• Artists choosing between a standard single-battery setup and a dual-battery workflow

Charging and Care

• Use the supplied Type-C cable and charging plug.
• Recommended charging input: DC 5V/2A.
• Estimated charging time is approximately 2–3 hours.
• Disconnect the battery after charging.
• Keep the charging port and battery contacts clean and dry.
• Power off the machine and remove the battery before surface cleaning.
• Do not immerse the handpiece, battery or charging accessories in liquid.
• Do not use damaged batteries, cables or charging accessories.
• Store the machine in a clean, dry environment.

One-Year Limited Warranty

The YDPMU DEMO Pro Wireless PMU Machine includes a one-year limited warranty from the date of purchase. The warranty applies to manufacturing defects under normal professional use.

Damage caused by misuse, accidental impact, improper charging, liquid exposure, unauthorized disassembly or modification, incorrect cleaning and normal wear is not covered. Please retain your order information when contacting YDPMU for warranty support.

Frequently Asked Questions

Is the YDPMU DEMO Pro a wireless PMU machine?

Yes. The DEMO Pro operates wirelessly with a replaceable 700mAh magnetic battery. It can also be connected to a compatible external PMU power supply using the included RCA adapter and connection cable.

Is the 2.5–3.5mm stroke continuously adjustable?

Yes. The stroke can be adjusted continuously within the 2.5–3.5mm range. It is not limited to three fixed preset positions. Make stroke adjustments only while the motor is stopped.

What is the difference between the Single Battery and Dual Battery options?

The Single Battery option includes one 700mAh magnetic battery in total. The Dual Battery option includes two 700mAh magnetic batteries in total. The handpiece and all other included accessories are the same.

How long does each battery last?

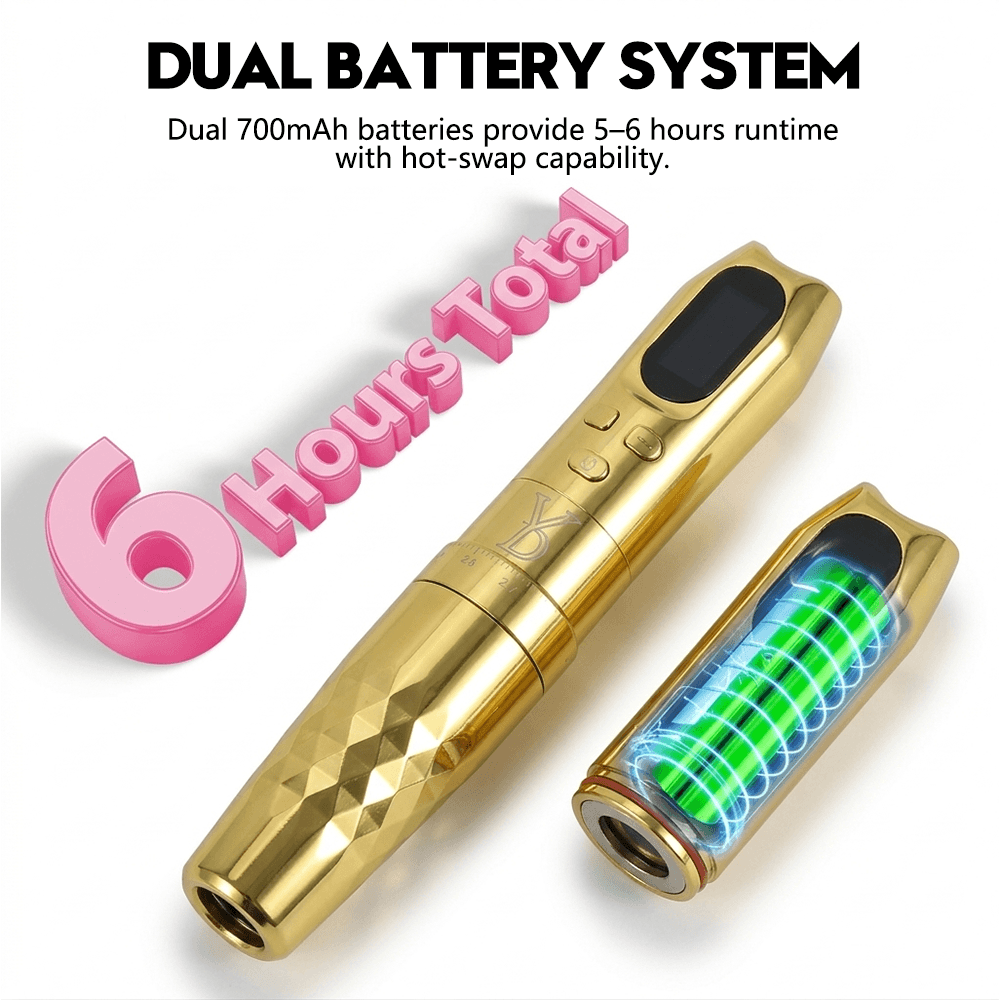

Each 700mAh battery provides an estimated operating time of approximately 2.5–3 hours. The Dual Battery option provides approximately 5–6 hours of combined estimated runtime.

How long does the battery take to charge?

Estimated charging time is approximately 2–3 hours using the supplied Type-C charging cable and charging plug with a DC 5V/2A input.

Which cartridges are compatible with the DEMO Pro?

The DEMO Pro is compatible with standard universal-style PMU cartridges. Artists should always verify secure cartridge fit before use.

Are needle cartridges included?

No. Needle cartridges are not included with either the Single Battery or Dual Battery option and must be purchased separately.

Can the machine be used in wired mode?

Yes. The included RCA adapter and connection cable allow the machine to operate with a compatible external PMU power supply. The external PMU power supply is not included.

Does stroke length control implantation depth?

No. Stroke length changes the machine’s drive characteristics and needle travel. Implantation depth also depends on needle protrusion, hand speed, machine angle, technique and tissue assessment.

What procedures can the DEMO Pro be used for?

The machine is designed for trained professionals performing nano brows, powder brows, lip blush, permanent eyeliner, scalp micropigmentation and areola procedures. The appropriate configuration depends on the cartridge, pigment, treatment area and professional technique.

How much does the DEMO Pro weigh?

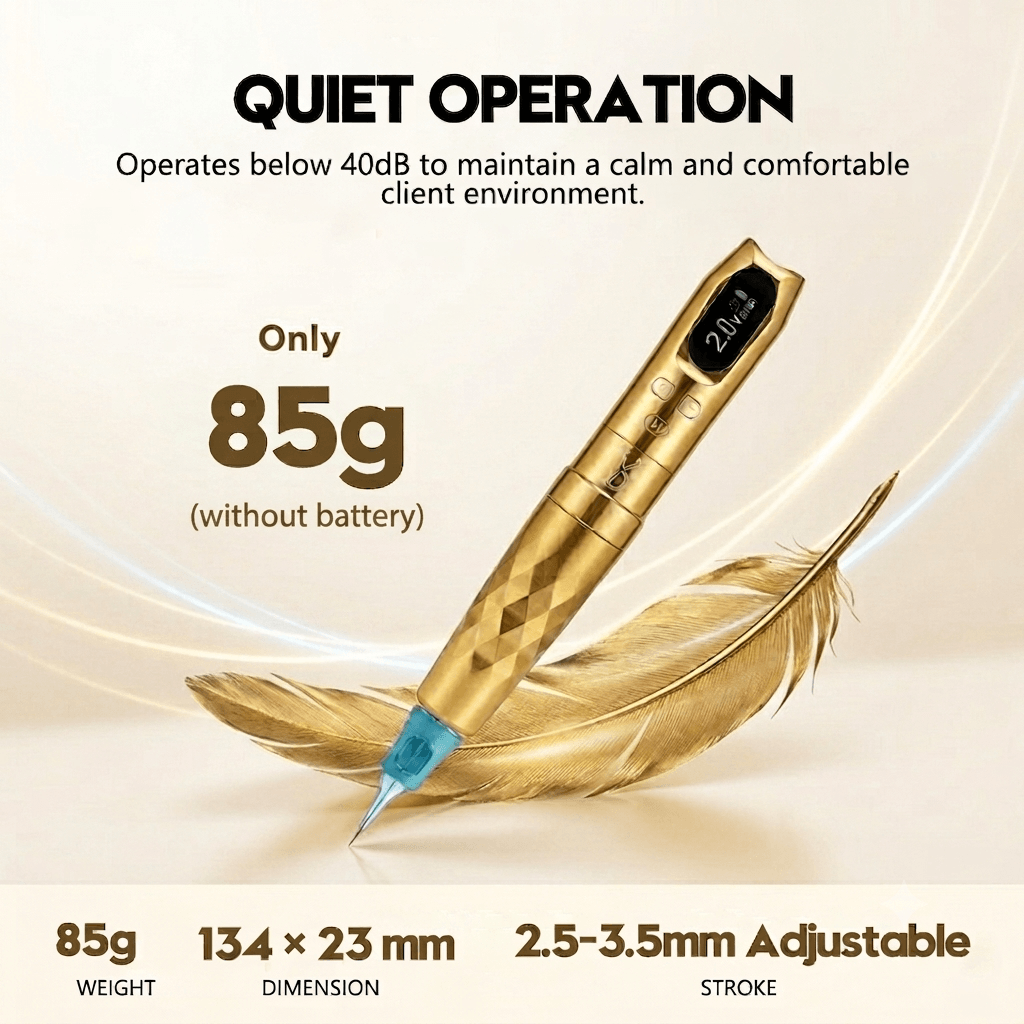

The handpiece weighs approximately 85g without a battery and approximately 105g with one magnetic battery installed.

Does the DEMO Pro include a warranty?

Yes. The machine includes a one-year limited warranty covering manufacturing defects under normal professional use, subject to the applicable warranty terms.

Professional Use Only: The YDPMU DEMO Pro is intended for trained permanent makeup professionals. Always follow applicable hygiene, cartridge disposal, infection-control and local regulatory requirements.
