YDPMU Artis Wireless SMP Machine - DOT Mode, 2.5–4.0mm Adjustable Stroke

YDPMU Artis Wireless SMP Machine – DOT Mode, 2.5–4.0mm Adjustable Stroke

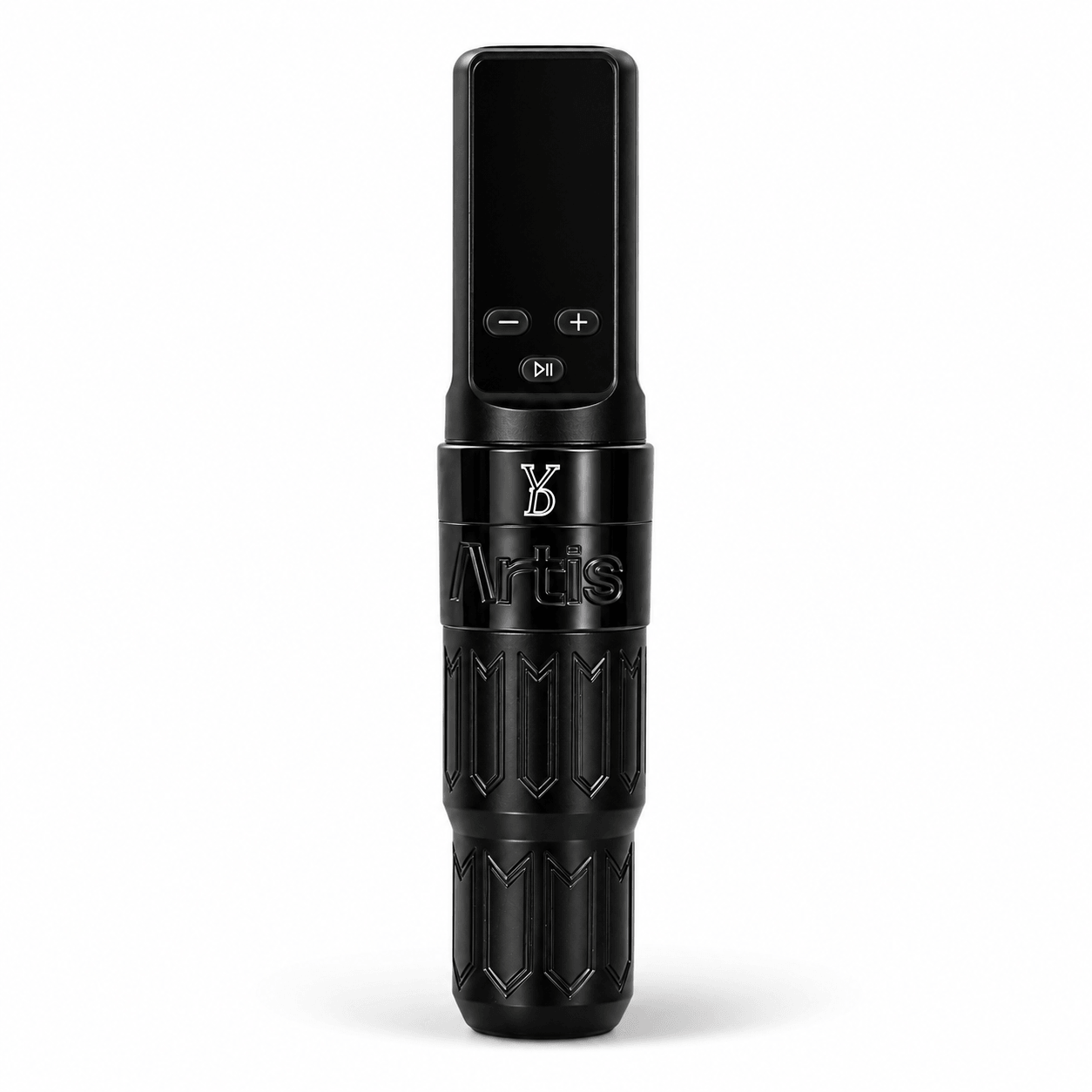

The YDPMU Artis CTM113 is a professional wireless scalp micropigmentation machine combining adjustable pulsed DOT operation, continuous PMU operation and a 2.5–4.0mm adjustable stroke in one handpiece.

Artis is primarily positioned for trained scalp micropigmentation artists who require controlled dot-placement workflows, while its continuous PMU Mode supports compatible professional permanent makeup workflows.

The machine can operate wirelessly with its included 1680mAh magnetic battery or through an RCA connection when connected to a compatible external RCA power supply.

Quick Product Summary

DOT Mode for Professional SMP Workflows

DOT Mode provides adjustable pulsed machine operation designed to support controlled dot-placement workflows in professional scalp micropigmentation.

The artist can coordinate the machine’s pulsed operation with the selected voltage, frequency setting, stroke, cartridge and hand movement.

DOT Mode does not automatically determine dot size, spacing, pigment deposit or implantation depth. These remain dependent on the complete machine and cartridge setup, pigment handling, scalp assessment and professional technique.

Artists should evaluate machine behavior and dot consistency on an appropriate practice surface before professional application.

PMU Mode for Continuous Operation

PMU Mode provides continuous machine operation for compatible professional permanent makeup workflows.

The machine starts in PMU Mode. Artists should confirm the displayed mode, voltage, stroke, cartridge fit and visible needle position before beginning work.

No universal machine setting is appropriate for every procedure. Final configuration must be selected according to the cartridge, pigment, treatment area, tissue response and the artist’s professional training.

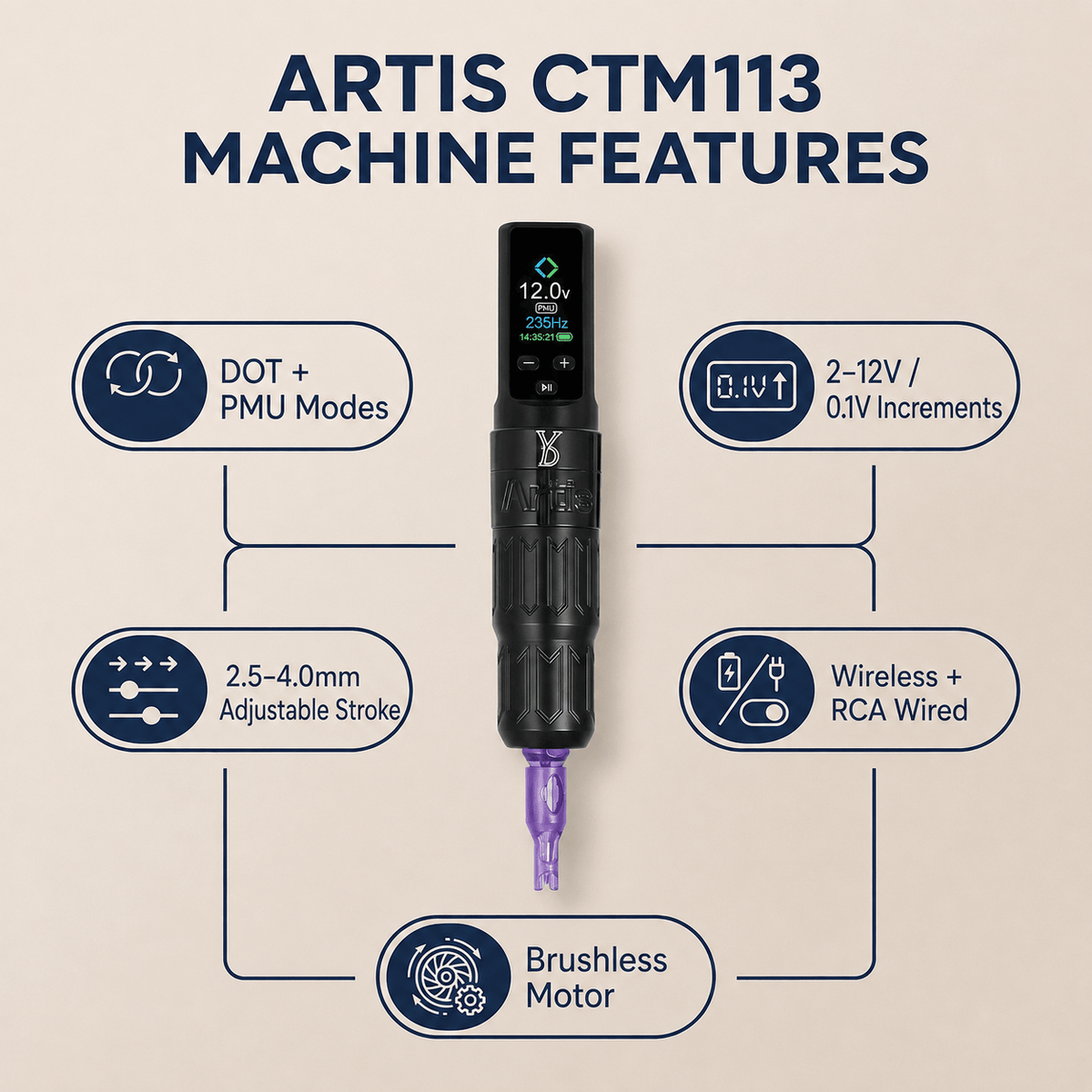

Adjustable 2.5–4.0mm Stroke

The Artis handpiece provides a mechanical stroke adjustment range from 2.5mm to 4.0mm. This allows trained artists to change the machine’s drive characteristics for different professional workflows.

Stroke length should not be interpreted as pigment implantation depth. A longer stroke does not automatically mean that pigment will be implanted deeper.

Actual implantation depends on factors including:

• Cartridge configuration and taper
• Visible needle protrusion
• Machine voltage and operating mode
• Hand pressure and working angle
• Hand speed and contact time
• Scalp or tissue response
• Professional technique

Needle-Protrusion Adjustment

The mechanical visible needle-protrusion adjustment range is 0–4.0mm.

This measurement is a mechanical reference only. It does not represent or guarantee the depth at which pigment enters the tissue. Always confirm cartridge fit and visible needle position before operation.

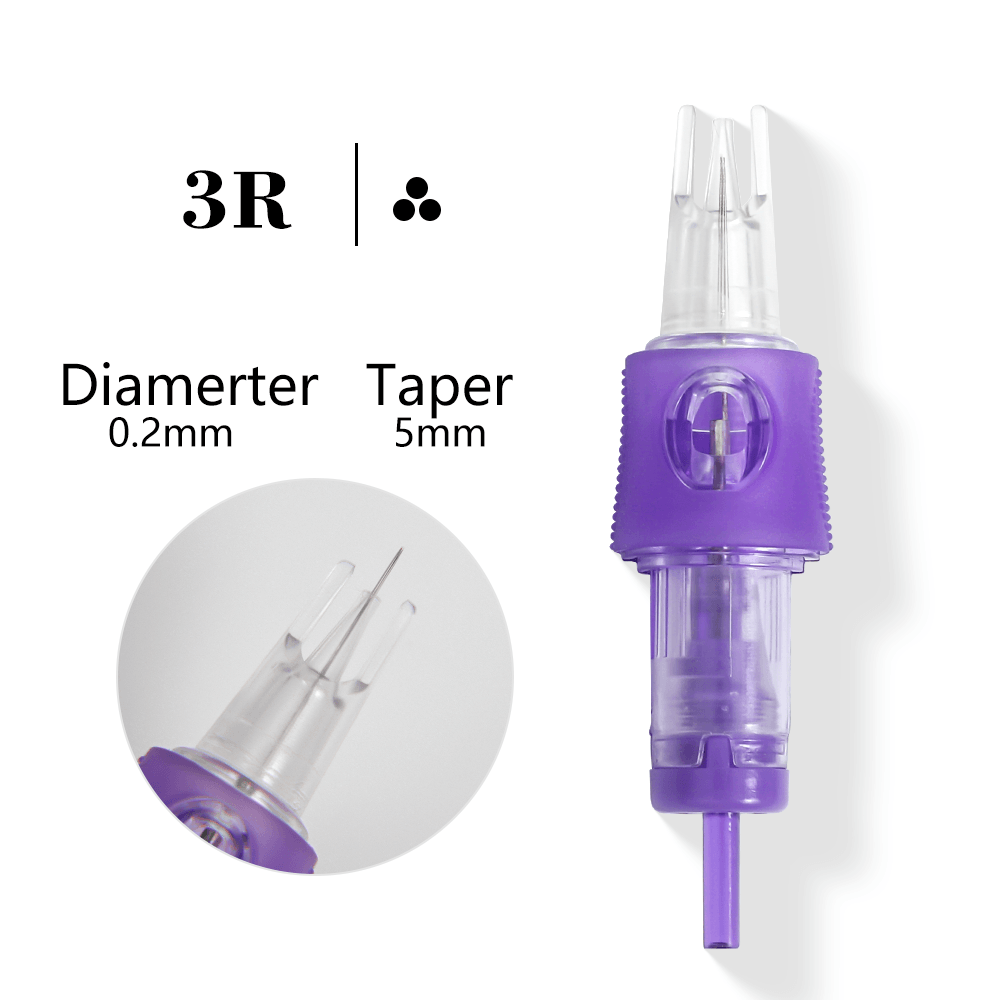

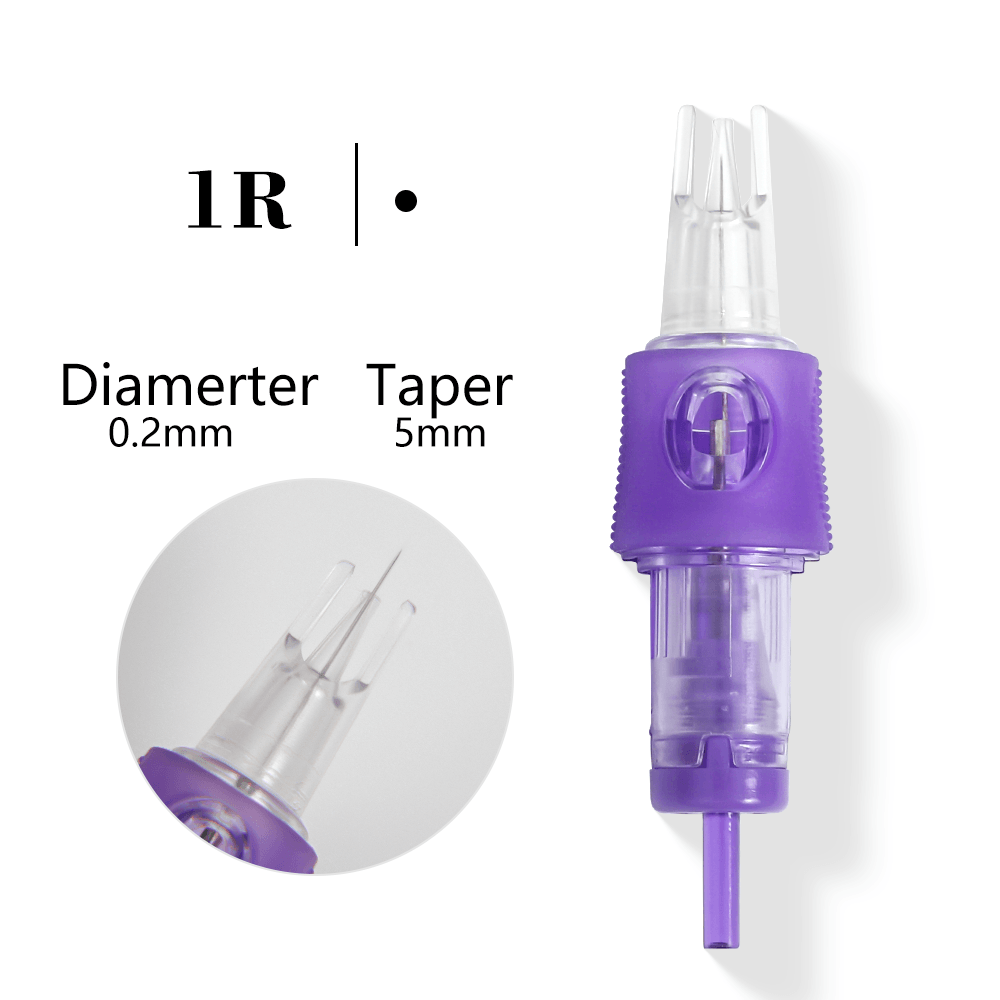

Recommended Universal Cartridge Needles

The Artis CTM113 is compatible with standard universal-style PMU cartridge systems. For professional SMP workflows, the recommended companion cartridges are the YDPMU Violet Precision Universal Cartridge Needles – 20pcs per box.

The Violet Precision range includes cartridge configurations developed for professional PMU and SMP workflows. Artists should select the appropriate needle configuration according to their training, intended technique, pigment, machine settings and scalp assessment.

Needle cartridges are sold separately and are not included with the Artis machine-only package.

Brushless Motor

Artis uses a brushless motor with a manufacturer-specified speed of 11,000 RPM at 8V. The motor supports both continuous PMU operation and the machine’s pulsed DOT workflow.

Motor speed alone does not determine dot quality, saturation or healed results. Performance remains dependent on the complete working setup and artist technique.

Wireless Battery Operation

The machine includes one 1680mAh magnetic battery. Manufacturer-estimated runtime is approximately three hours per full charge, with an estimated charging time of approximately one hour.

Actual operating time may vary according to voltage, selected mode, frequency settings, battery condition, charging conditions and usage pattern.

Both US and EU plug adapters are included for charging.

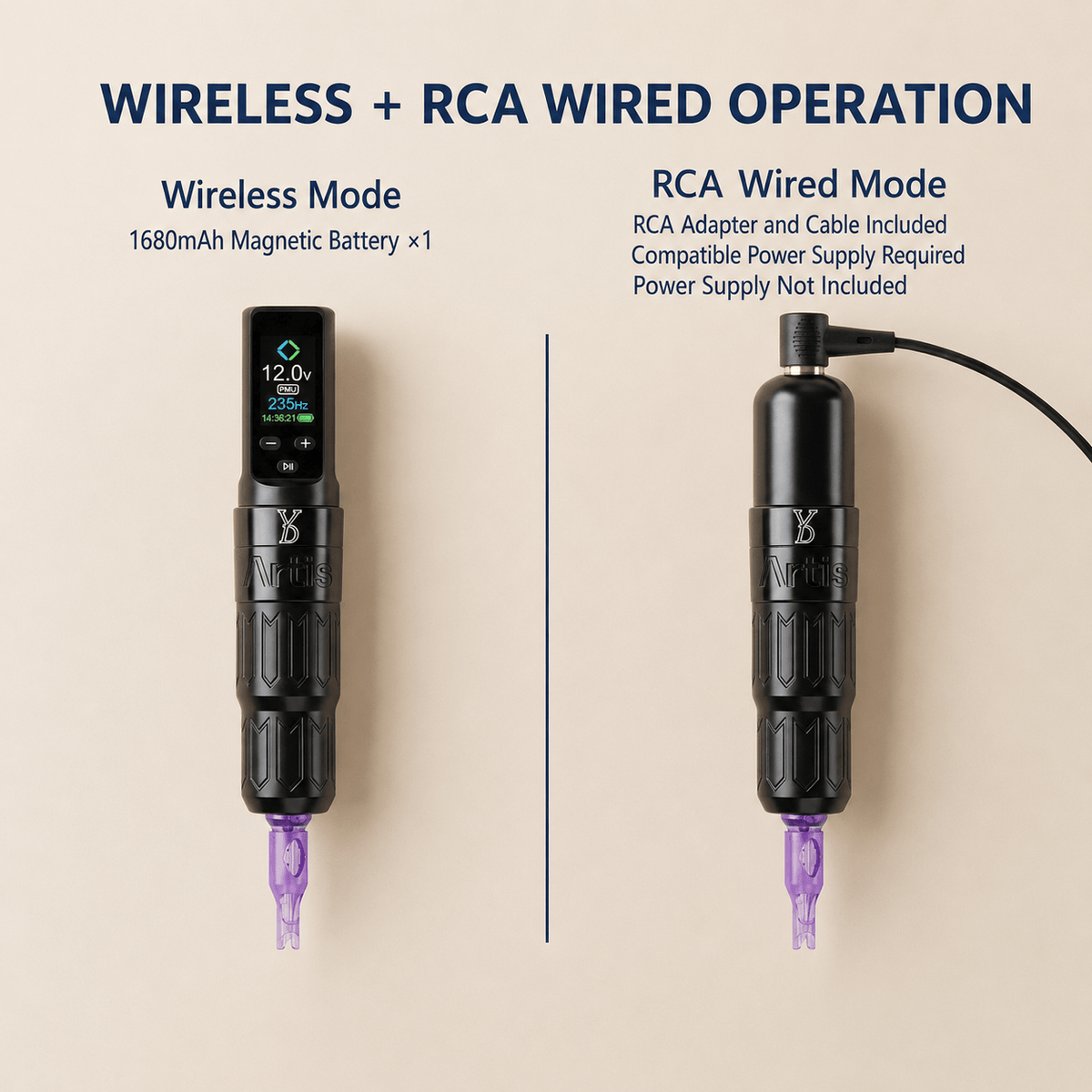

RCA Wired Operation

Artis can also be operated through an RCA connection. The package includes an RCA adapter and RCA connection cable.

A compatible external RCA power supply or control unit is not included. Customers who want to use RCA wired mode must provide their own compatible power supply.

To change from wireless to RCA operation, power off the machine, remove the magnetic battery, install the RCA adapter and connect it to a compatible external supply before operation.

What Is Included with the Artis Machine?

• YDPMU Artis CTM113 handpiece × 1
• 1680mAh magnetic battery × 1
• Power adapter × 1
• US plug adapter × 1
• EU plug adapter × 1
• Charging cable × 1
• RCA adapter × 1
• RCA connection cable × 1

Needle cartridges, SMP pigments and an external RCA power supply are not included with the machine.

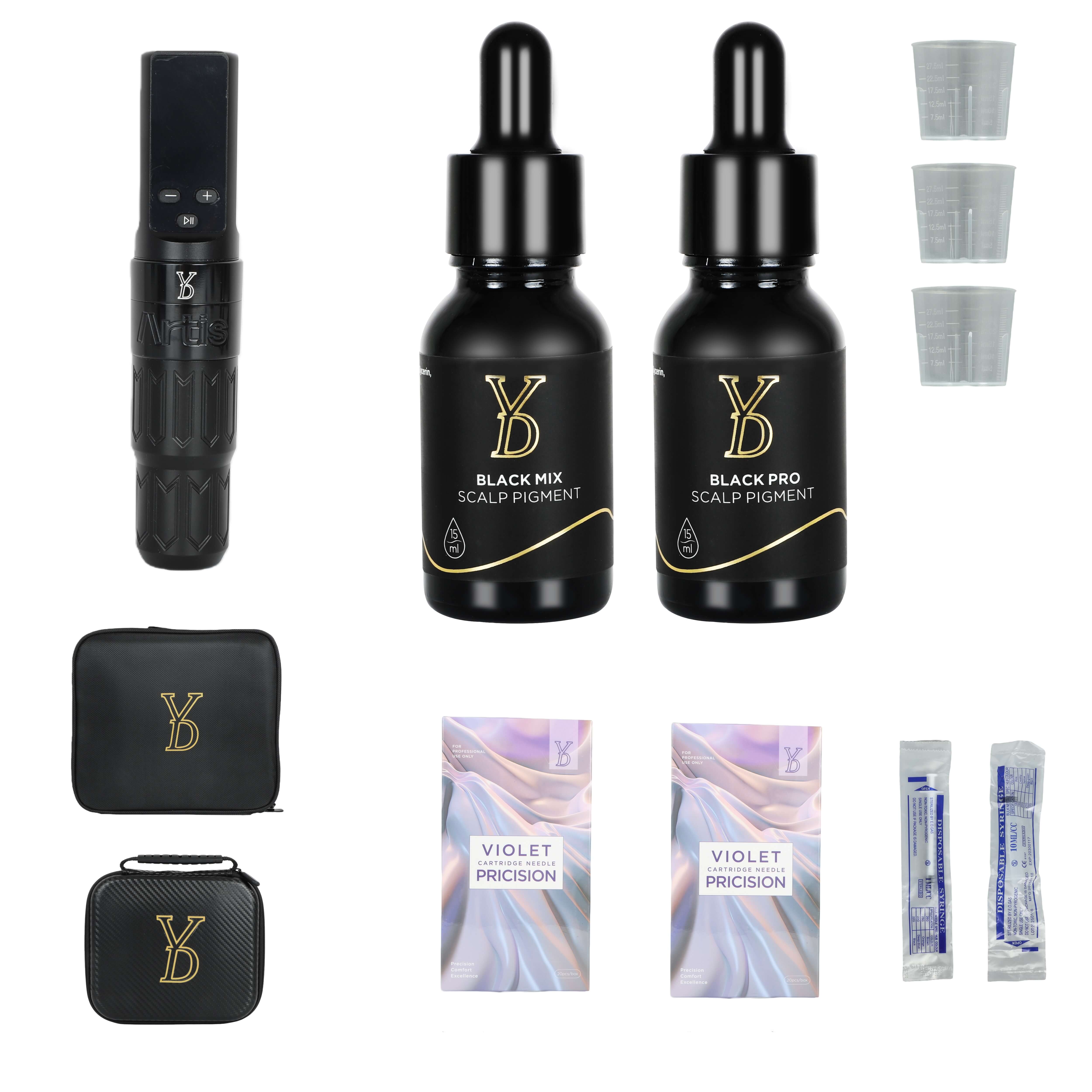

Artis Machine or Complete SMP Kit?

View the YDPMU Artis Complete SMP Machine Kit

Who Is the Artis Machine For?

• Trained scalp micropigmentation artists
• PMU artists adding professional SMP services
• Studios requiring DOT and continuous operating modes in one device
• Artists who prefer wireless operation with RCA wired backup
• Artists seeking an adjustable-stroke SMP machine
• Professionals who already own compatible cartridges and SMP pigments

This machine is not a substitute for professional SMP education, hygiene training, applicable licensing or client assessment.

Artis CTM113 vs ScalpX Pro CTM105

Full Technical Specifications

Frequently Asked Questions

What is the difference between DOT Mode and PMU Mode?

DOT Mode provides adjustable pulsed operation designed to support professional SMP dot-placement workflows. PMU Mode provides continuous machine operation for compatible permanent makeup workflows.

Does DOT Mode automatically create identical SMP dots?

No. Dot size, spacing, pigment deposit and implantation remain dependent on cartridge selection, voltage, frequency, stroke, hand movement, scalp assessment and professional technique.

Is the stroke adjustable?

Yes. The mechanical stroke can be adjusted from 2.5mm to 4.0mm.

Does a longer stroke mean deeper implantation?

No. Stroke length and visible needle protrusion do not directly measure implantation depth. Actual implantation depends on the complete machine and cartridge setup, hand technique and tissue response.

How many batteries are included?

The Artis machine includes one 1680mAh magnetic battery.

Can the machine operate in RCA wired mode?

Yes. An RCA adapter and connection cable are included. A compatible external RCA power supply or control unit is required and is not included.

Which plug adapters are included?

Both US and EU plug adapters are included with the machine.

Which cartridges are compatible?

The Artis is compatible with standard universal-style PMU cartridges. For professional SMP workflows, YDPMU recommends the Violet Precision Universal Cartridge Needle range. Needle configuration should be selected according to the artist’s training and intended technique. Cartridges are sold separately and are not included with the machine.

Are SMP pigments included?

No. Pigments are not included with the machine-only product. Artists requiring pigments, cartridges and practice supplies can select the separate Artis Complete SMP Machine Kit.

Is professional SMP training required?

Yes. Scalp micropigmentation requires appropriate professional training, hygiene procedures, client assessment and compliance with applicable local requirements. The machine does not replace professional education.

What is the warranty?

The machine includes a one-year warranty. Contact YDPMU customer service for coverage details and after-sales assistance.

ARTIS User Manual

Download the YDPMU ARTIS CTM113 User Manual (PDF)

Professional Use and Documentation

For trained professional use only. Use sterile, single-use compatible cartridges and follow applicable hygiene, barrier-protection and sharps-disposal requirements.

Do not operate or charge the machine in wet environments. Do not immerse, autoclave, disassemble or use the device if overheating, abnormal vibration or visible damage is detected. Keep the machine and accessories away from children.

Product specifications and included accessories may change with later production updates. Confirm current information on the official product page before purchase or use.

Product documentation and component-specific information are available upon request. Users are responsible for following the supplied instructions, applicable hygiene practices, local regulations and professional training requirements.
